18 Other Extension Devices and Optional Units (External Dimensions and

18.1 Special Function Units/Blocks

258

FX3G Series Programmable Controllers

User's Manual - Hardware Edition

18.1.15 FX2N-64CL-M

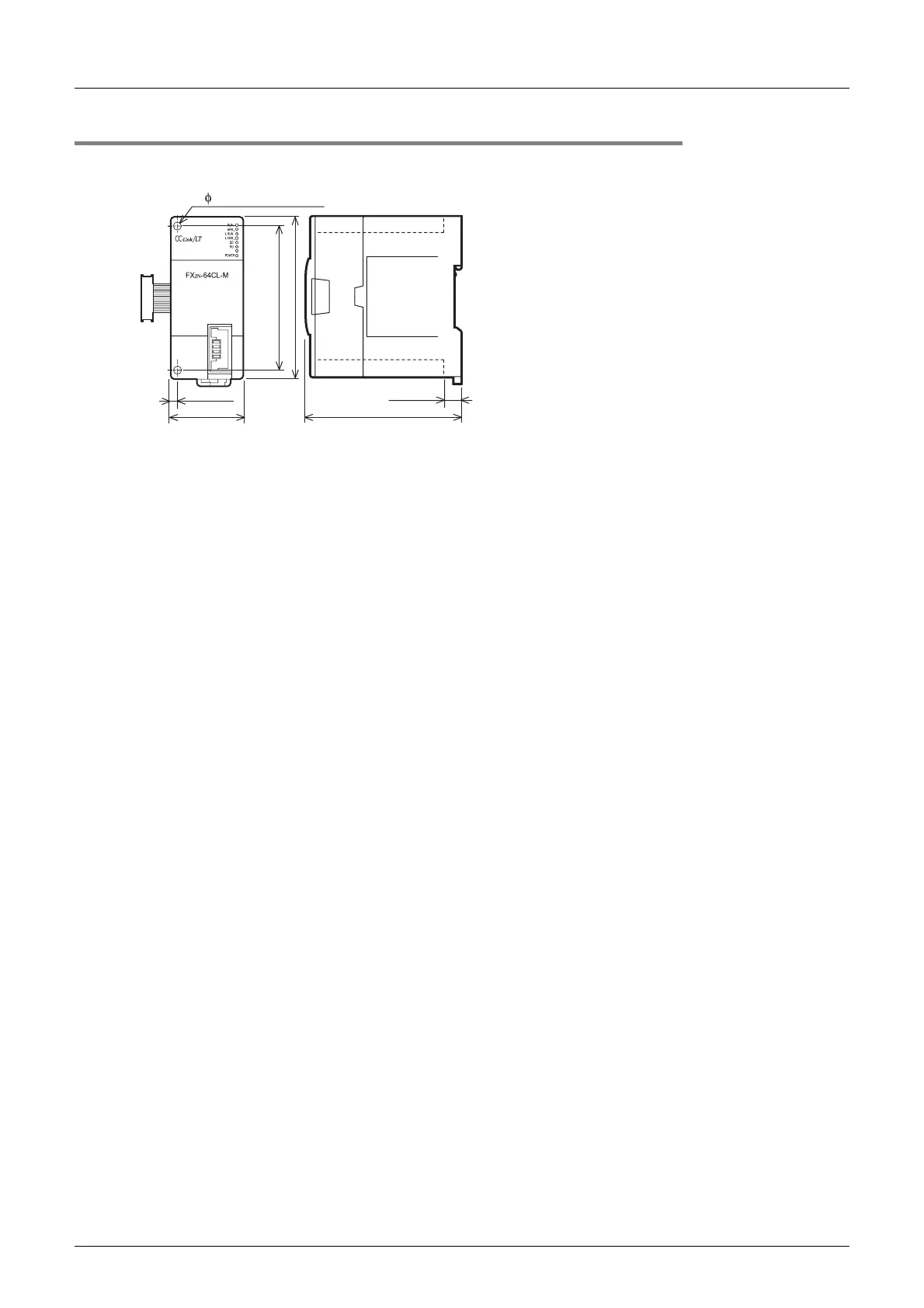

External Dimensions

• MASS(Weight): 0.15kg (0.33lbs)

• Installation: DIN rail of 35mm (1.38") in width or screws

• Accessories: Label for indication of special unit/block number, Manual supplied with product

• The connector for CC-Link/LT interface is on the front face of the product

• The extension cable is already connected to the extension block

87(3.43")

80(3.15")

(mounting hole pitch)

90(3.55")

Unit:mm (inches)

4(0.16")

9(0.36")

43(1.7")

4.5 mounting holes
