18 Other Extension Devices and Optional Units (External Dimensions and
18.4 Power Supply
265
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

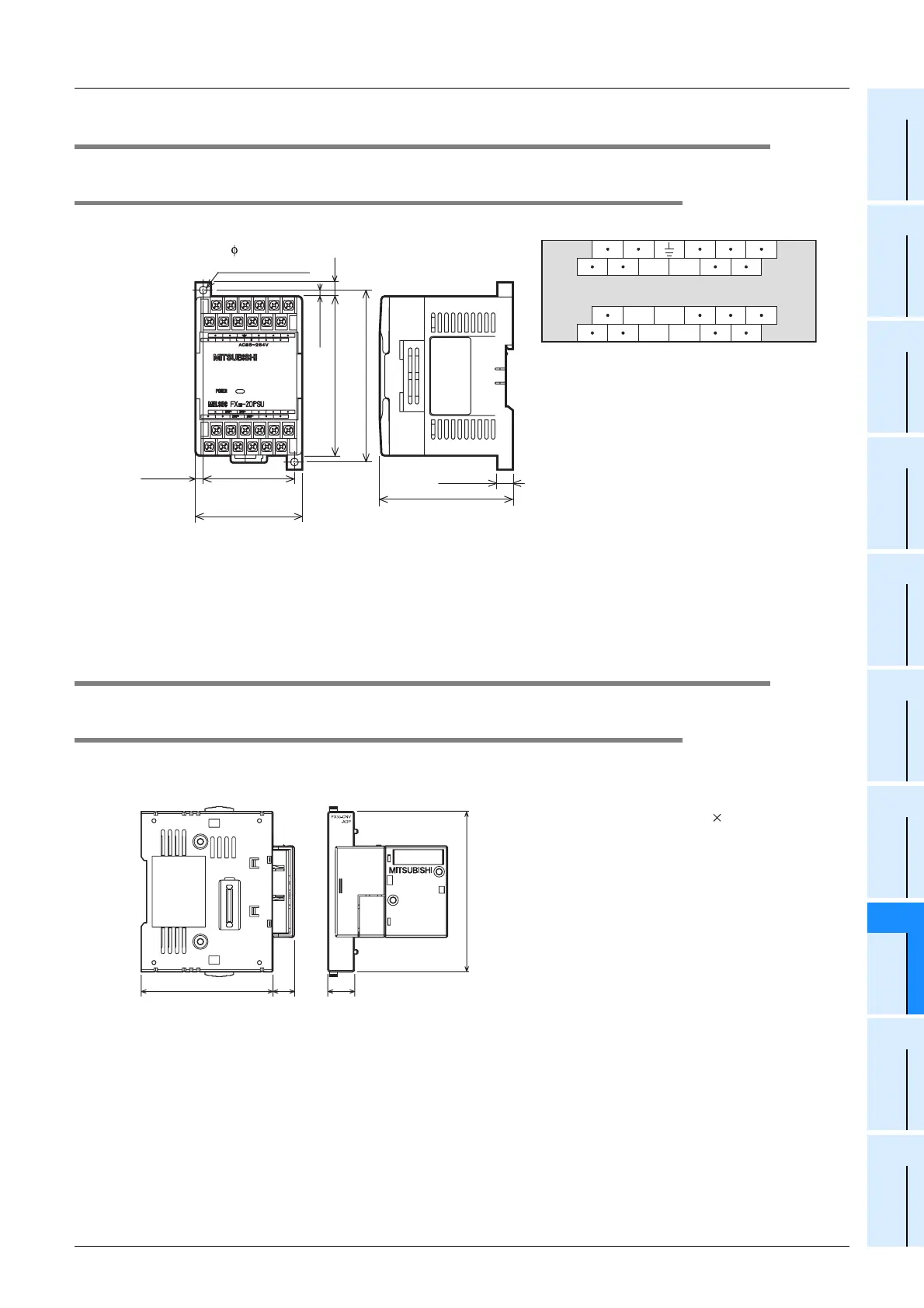

18.4 Power Supply
18.4.1 FX2N-20PSU
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Manual supplied with product
• Terminal block: M3.5 screws
18.5 Connector Conversion Adapter
18.5.1 FX3G-CNV-ADP
External Dimensions
• MASS(Weight): 0.1kg (0.22lbs)
• Accessories: Four M3 8 tapping screws
(for installation of adapter),
Side cover,
Manual supplied with product
75(2.96")
98(3.86")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
52(2.05")
(mounting hole pitch)
9(0.36")
60(2.37")
2-
4.5
mounting holes
4(0.16")
4(0.16")
7.5 (0.3")
24V+
24V+ 24V-
24V-
L N
74(2.92") 12
(0.48")
14.6
(0.58")
90(3.55")
Unit:mm (inches)
