18.2 Special Adapters

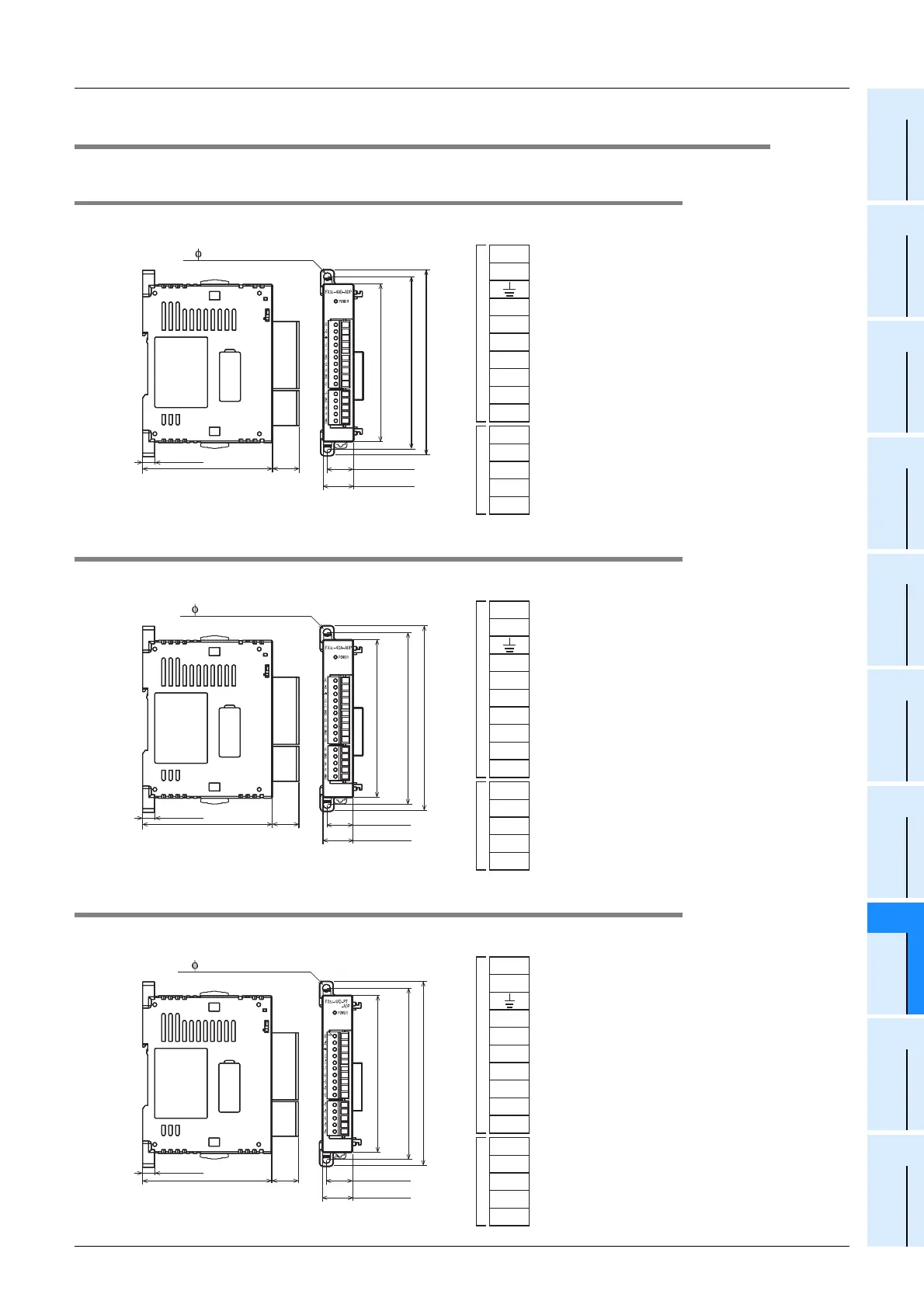

18.2.1 FX3U-4AD-ADP
External Dimensions, Terminal Layout
• MASS(Weight): 0.1kg (0.22lbs)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Manual supplied with product
• Terminal block: European type
18.2.2 FX3U-4DA-ADP
External Dimensions, Terminal Layout
• MASS(Weight): 0.1kg (0.22lbs)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Manual supplied with product
• Terminal block: European type
18.2.3 FX3U-4AD-PT(W)-ADP
External Dimensions, Terminal Layout
• MASS(Weight): 0.1kg (0.22lbs)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Manual supplied with product
• Terminal block: European type
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
24+
24-
V1+
I1+
COM1
V2+
I2+
COM2
V3+
I3+
COM3
V4+
I4+
COM4
10
poles
5
poles
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
24+
24-
V1+
I1+
COM1
V2+
I2+
COM2
V3+
I3+
COM3
V4+
I4+
COM4
10
poles
5
poles
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
24+
24-
L1+
L1-
I1-
L2+
L2-
I2-
L3+
L3-
I3-
L4+
L4-
I4-
10
poles
5
poles
