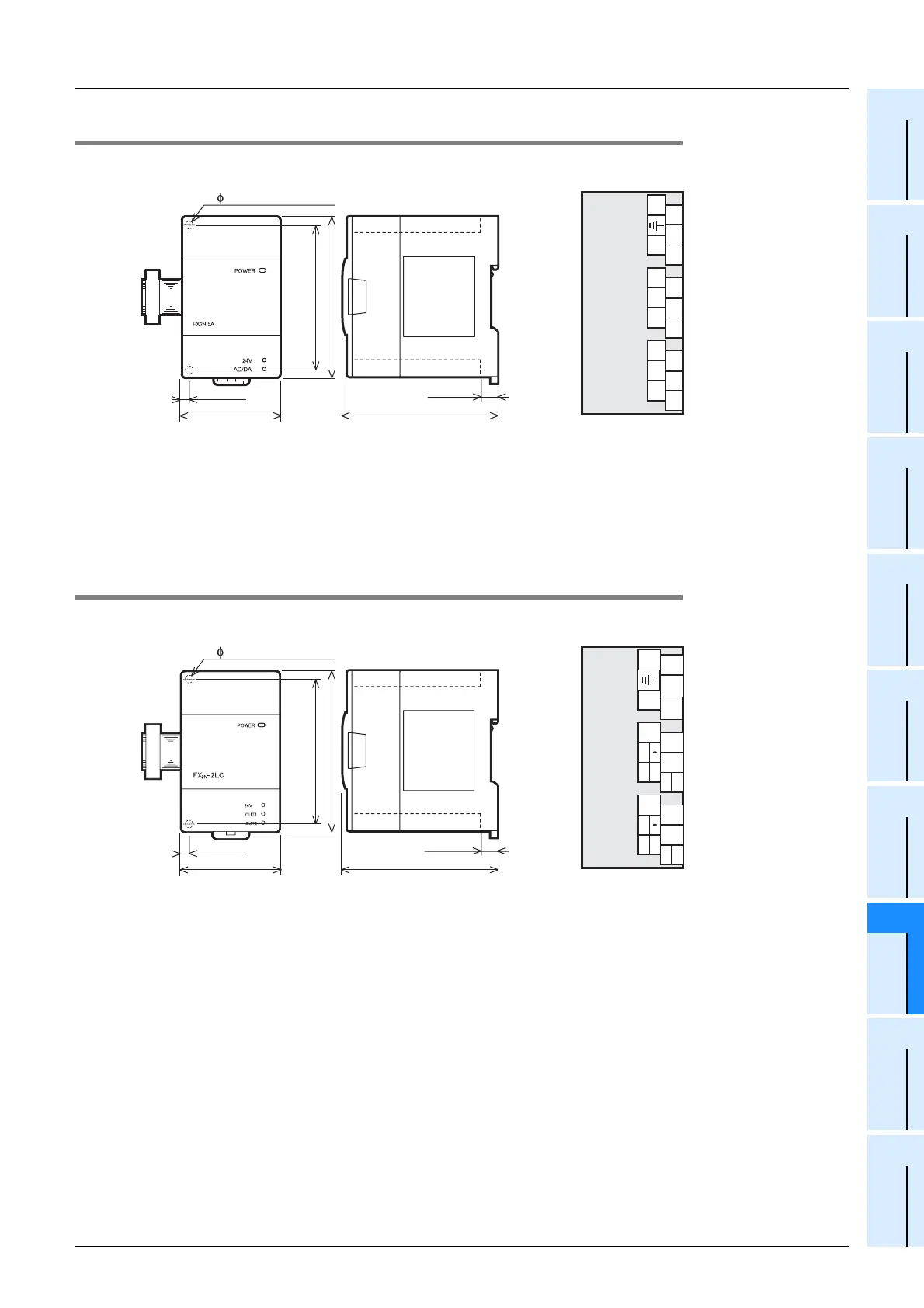

18.1.9 FX2N-5A
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
18.1.10 FX2N-2LC
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-
4.5 mounting holes
24+
24- V+ I+
VI-
VI- V+ I+
I+ V+
VI- V+ I+
VI-
OUT IN1 IN2 IN3
V+ VI- I+
IN4
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-
4.5 mounting holes
24+
24-
OUT1
OUT2
COM
CT FG
PTA
CT
CT FG
CH1
CT
PTB
TC-
PTB TC+
PTA
PTB
TC-
PTB
TC+
CH2
