5.5 Cautions on using transparent port (2-port) function of GOT-F900
Series
When monitoring circuits, device registration, etc. in an FX3G PLC from GX Developer Ver. 8.72A or later
using the transparent (2-port) function in the GOT-F900 Series, make sure to execute the following setting.
If the following setting is not provided, monitoring cannot be executed normally.
Setting in GX Developer (Ver.8.22Y or later)

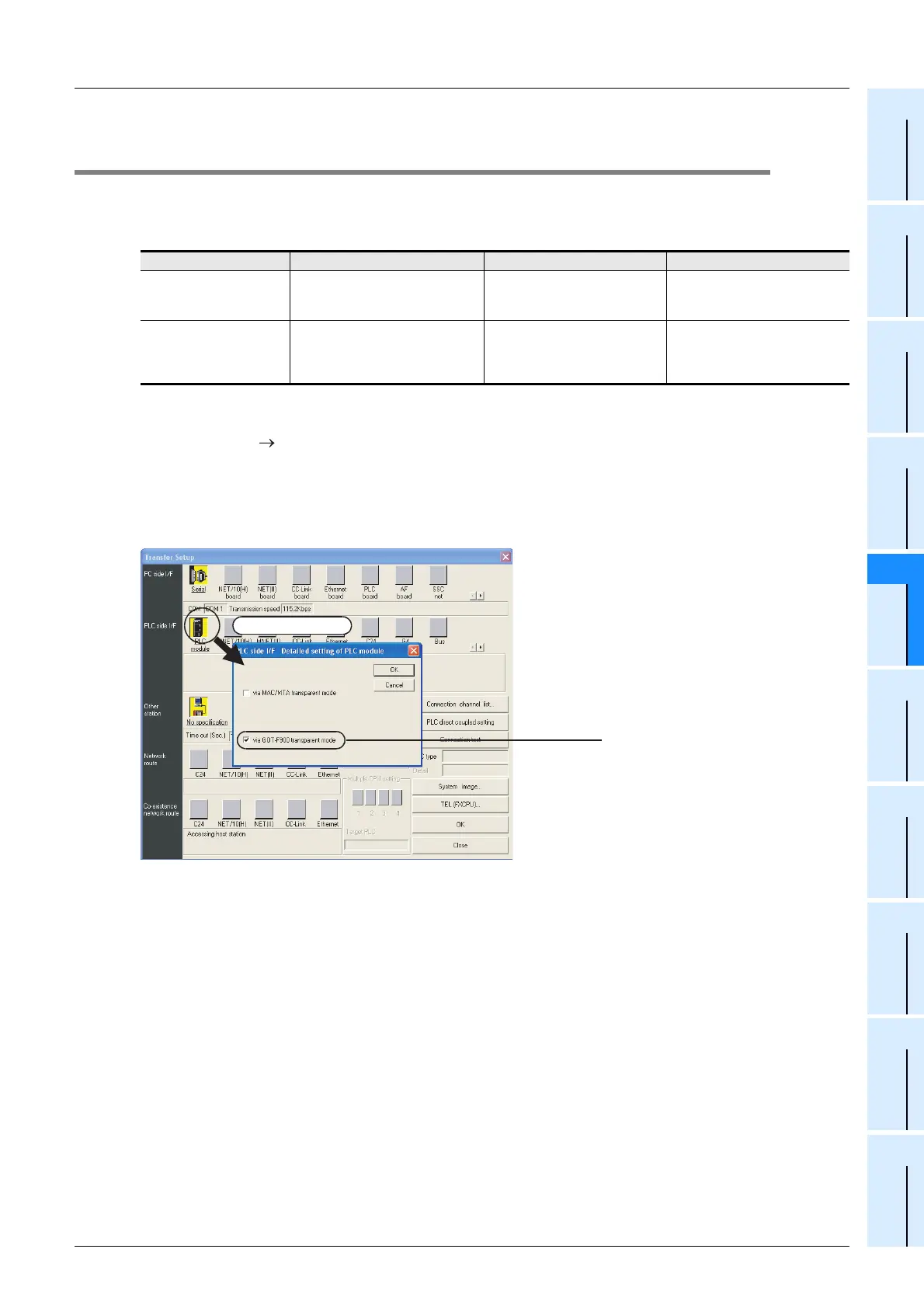

1. Select [Online] [Transfer setup...] to open the "Transfer Setup" dialog box.
2. Double-click [PLC module] in [PLC side I/F] to open the [PLC side I/F Detailed setting of PLC
module] dialog box.
3. Put a check mark to the check box [via GOT-F900 transparent mode] as shown below
4. Click the [OK] button to finish the setting.
GX Developer Ver.8.12N or earlier GX Developer Ver.8.22Y or later GX Developer Ver.8.72A or later
When using transparent
function in GOT-F900
Series
Setting shown below is not required.
Setting shown below is not
required.
Select "RS-232C" on "PC side I/F
Serial setting" dialog box, and
execute setting shown below.
When directly
connecting GX Developer
to PLC
Set "COM port" and "Transmission
speed" on "PC side I/F Serial
setting" dialog box.
Select "RS-232C" on "PC side I/F
Serial setting" dialog box, and set
"COM port" and "Transmission
speed."
Select "RS-232C" on "PC side I/F
Serial setting" dialog box, and set
"COM port" and "Transmission
speed."
Double-click it.
Put a check mark to the
check box "via GOT-F900
transparent mode."
display screen is the example of Ver.8.72A.
