15 Input/Output Powered Extension Units

15.5 FX2N-32ER, FX2N-48ER

202

FX3G Series Programmable Controllers

User's Manual - Hardware Edition

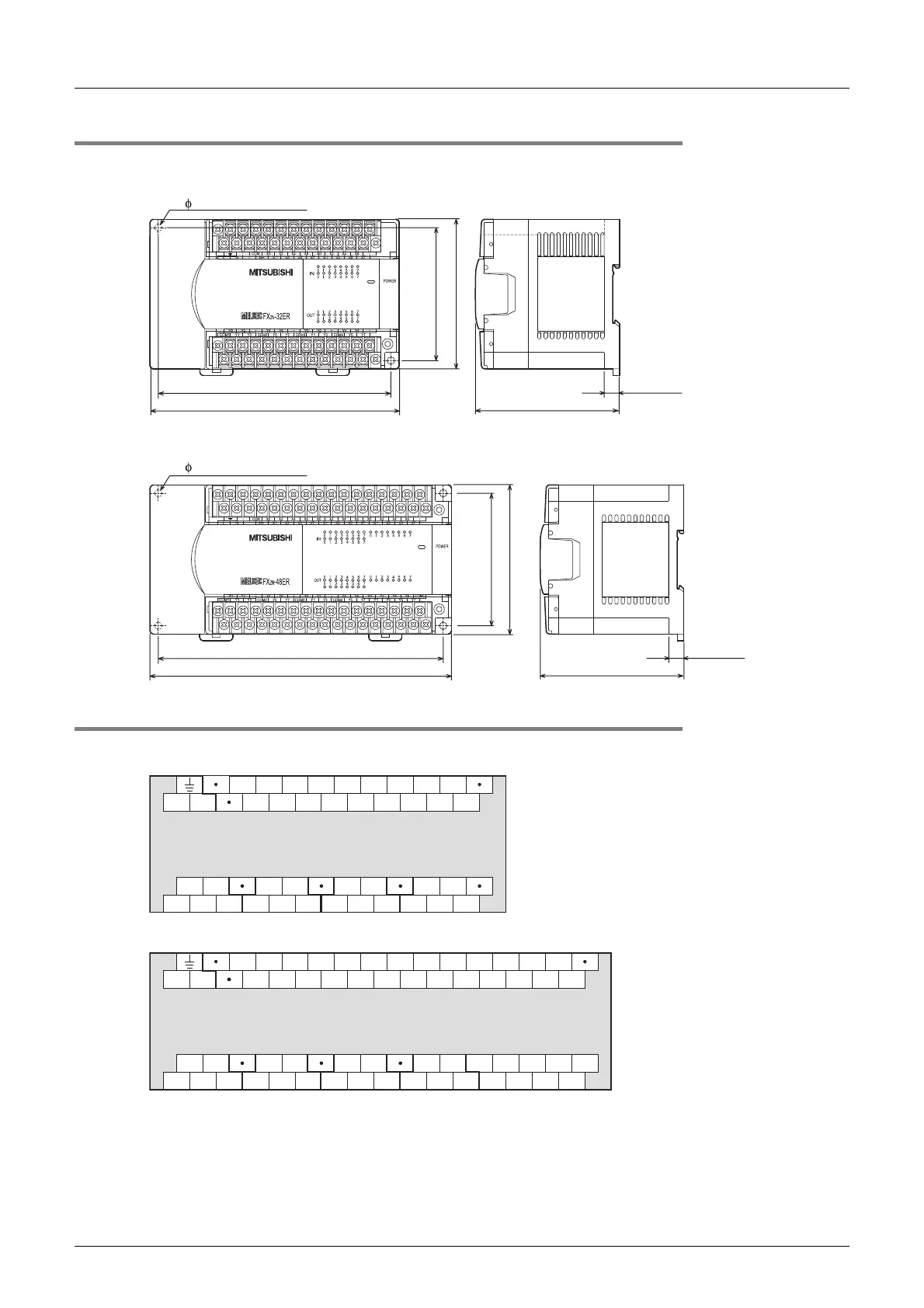

15.5.2 External dimensions

FX2N-32ER

2N-48ER

15.5.3 Terminal layout

FX2N-32ER

2N-48ER

150 (5.91")

140 (5.52") (mounting hole pitch)

80 (3.15")

(mounting hole pitch)

90 (3.55")

9 (0.36")

Unit : mm (inches)

87 (3.43")

4.5 mounting holes

182 (7.17")

172 (6.78") (mounting hole pitch)

80 (3.15")

(mounting hole pitch)

90 (3.55")

9 (0.36")

Unit : mm (inches)

87 (3.43")

4.5 mounting holes

COM

24+NL X1

Y4Y2

COM2

COM1

COM3 COM4

-32ER

COM

24+NL X1

Y4Y2

COM2

COM1

COM3 COM4

COM5

-48ER
