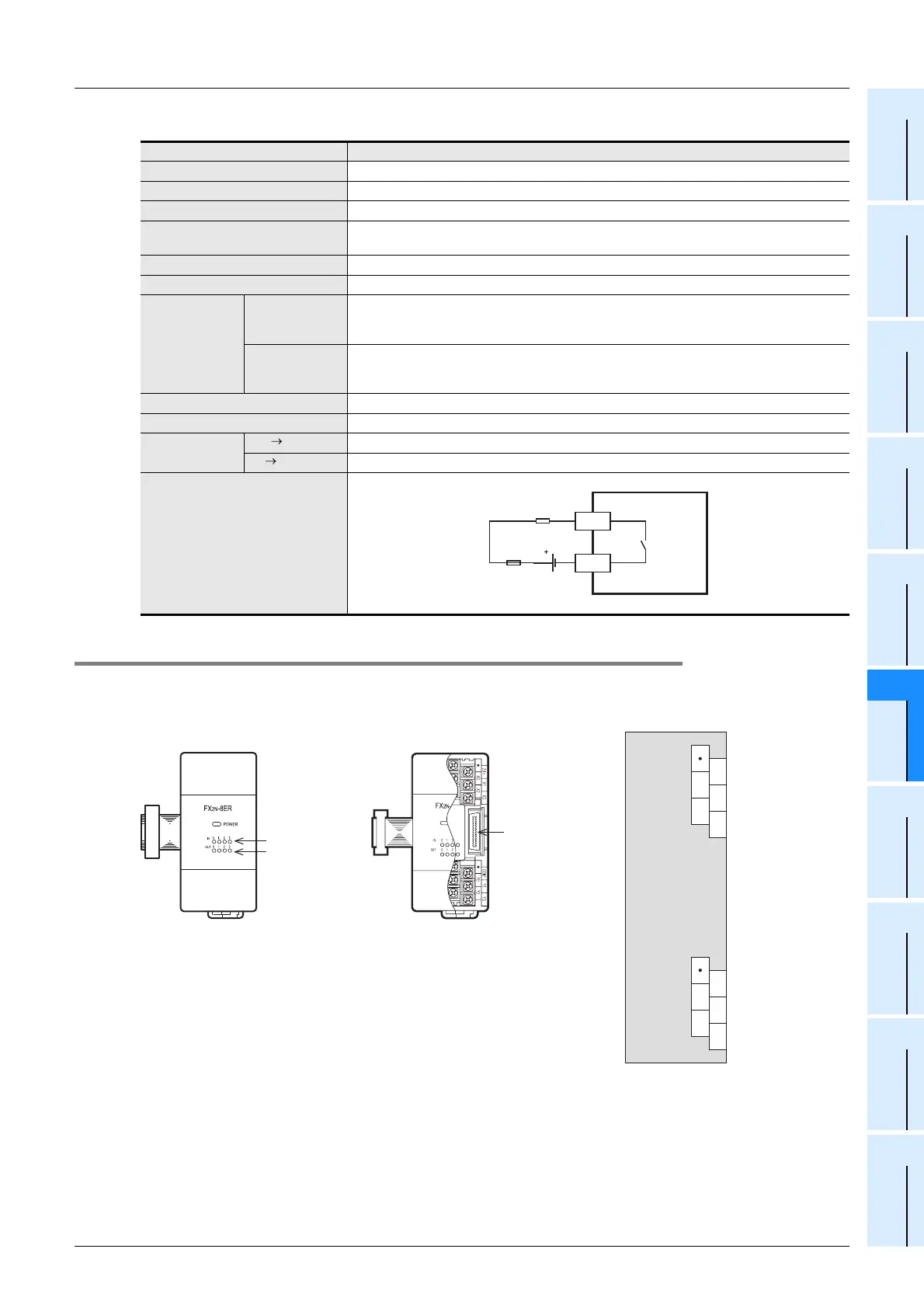

4. Output specifications (Relay output type)
16.3.2 Parts identification and terminal arrangement
Input numbers (X) are assigned to the upper four points, and output numbers (Y) are assigned to the lower
four points.
Item FX2N-8ER
Output Points 4 points
Connection type Vertical terminal block (M3 screws)
Output type Relay
External power supply
30V DC or less
240V AC or less (250V AC or less when the unit does not comply with CE, UL or cUL standards)
Output circuit insulation Mechanical insulation
Indication of output operation Supplying power to the relay coil will light the LED indicator lamp on panel.
Max. load
Resistance load
2A/point
The total resistance load current per common should be as follows:
• 4 output points/common: 8A or less
Inductive load
80VA
→ For the product life, refer to Subsection 14.4.3.
→ For cautions on external wiring, refer to Subsection 12.1.3.
Open circuit leakage current -
Min. load 5V DC, 2mA (reference values)
Response time
OFF ON Approx. 10ms
ON OFF Approx. 10ms
Output circuit configuration
Load
DC power
supply unit
Fuse
Y
COM1
Without coverWith cover
Input indicator
lamps (LED lamps)
Rear line
extension
connecto
r
Output indicator
lamps (LED lamps)
24+
X0
X1
X2
X3
Y0
Y1
Y2
Y3
COM1
