16.11 FX2N-8EYT, FX2N-16EYT, FX2N-16EYT-C (Transistor Output)
242
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
FX2N-16EYT-C
When an output (Y) number is assigned, 8 points on side A will be used for the lower output numbers, and 8
points on side B will be used for the higher output numbers.

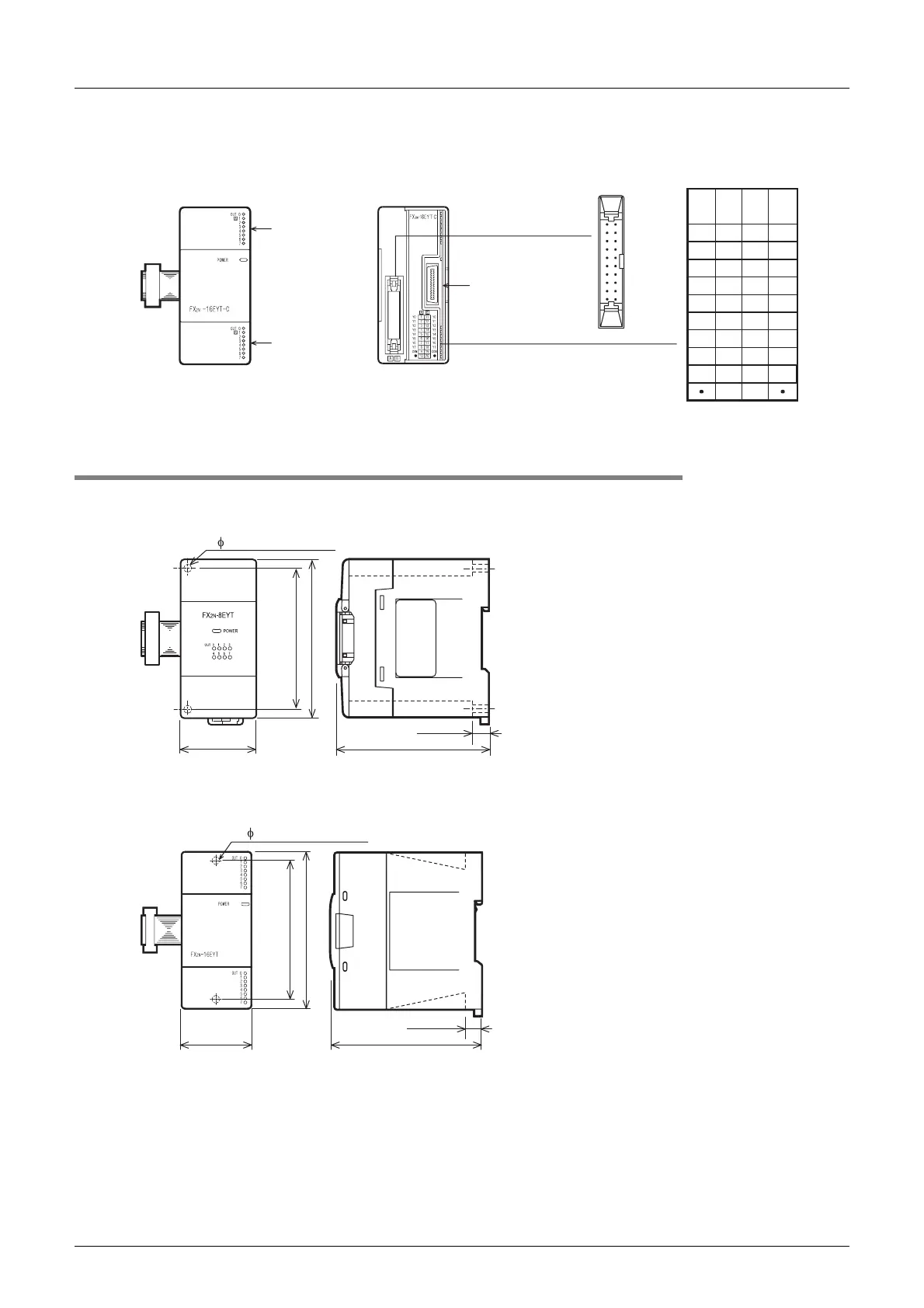

16.11.3 External dimensions
FX2N-8EYT
FX
2N-16EYT
Connector type
Terminal arrangement
With cover
Output indicator
lamps
(LED lamps)
Output indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
Y0
Y1
Y2
Y3
Y4
Y5
Y7
Y6
COM
1
2
3
4
5
6
8
7
9
No.
10
11
12
13
14
15
16
18
17
19
No.
20
Y0
Y1
Y2
Y3
Y4
Y5
Y7
Y6
COM
B
Side Side
A
43(1.7")
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
2- 4.5 mounting holes
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
40(1.58")
2- 4.5 mounting holes
