Mitsubishi FX3G Series User Manual

16 Input/Output Extension Blocks
16.12 FX2N-8EYT-H (Transistor Output)
244
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

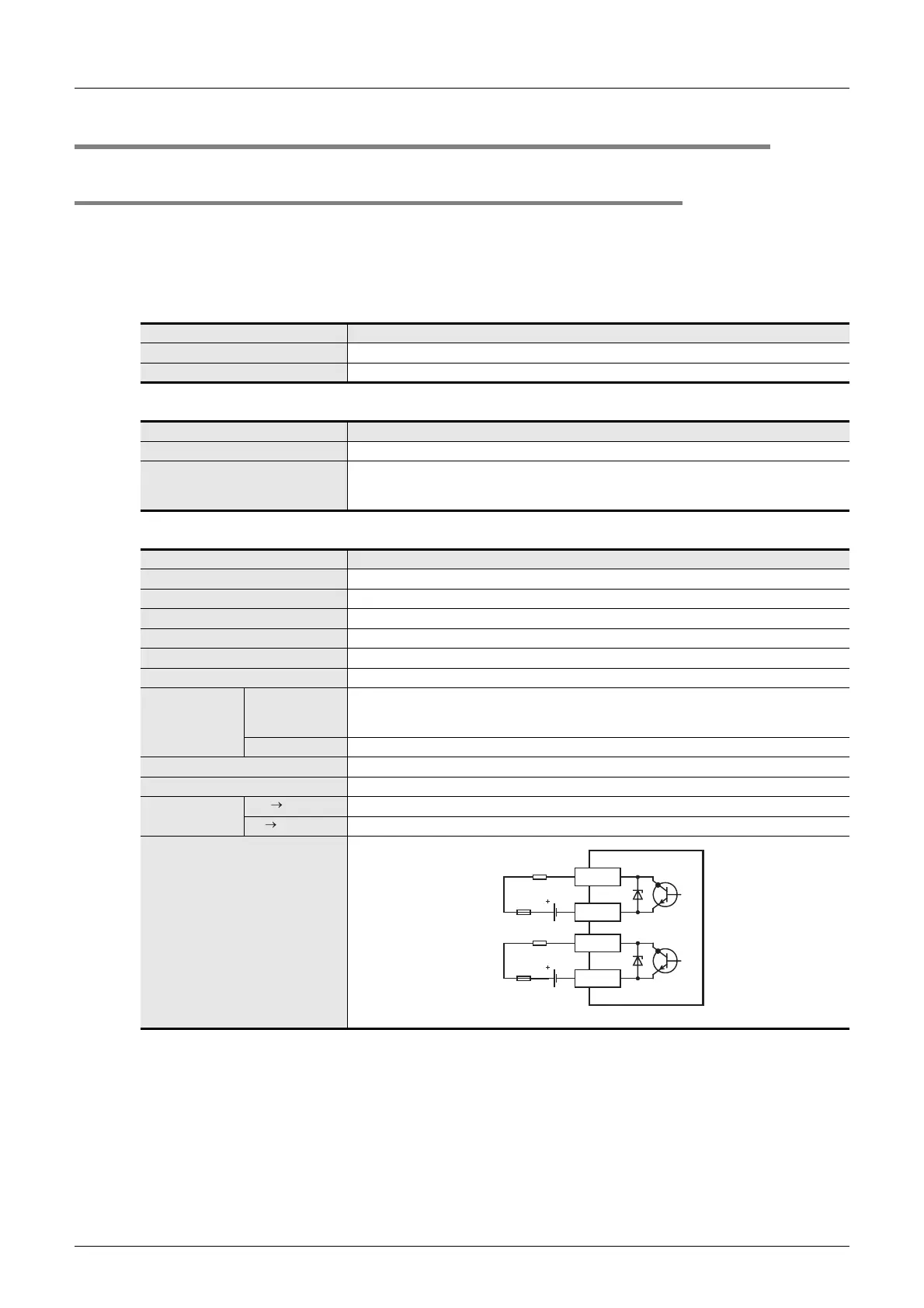

16.12 FX2N-8EYT-H (Transistor Output)
16.12.1 Product specifications
The generic specifications are identical to the main unit specifications.
→ Refer to Section 4.1 for generic specifications.
For external wiring, refer to the following chapters.
→ Refer to Chapter 12 for output wiring.
1. Power supply specifications
2. Weight and Other specifications (External dimensions are described later.)
3. Output specifications (Transistor output type)
Item FX2N-8EYT-H
Product type FX2N extension block
Rated voltage 24V DC (supplied from main unit and input/output powered extension unit)
Item FX2N-8EYT-H
MASS (Weight) 0.2kg (0.44lbs)
Other
• The extension cable is already connected to the extension block.
• Accessories: Label for indication of input/output number
• The DIN46277 rail (width: 35 mm (1.38")) or direct installation.
Item FX2N-8EYT-H
Output Points 8 points
Connection type Vertical terminal block (M3 screws)
Output unit/type Transistor/sink output
External power supply 5 to 30V DC
Output circuit insulation Photo-coupler insulation
Indication of output operation Activation of the photo-coupler will light the LED indicator lamp on panel.
Max. load
Resistance load
1A/point
The total load current per common should be as follows:
• 4 output points/common: 2A or less
Inductive load 24W/24V DC
Open circuit leakage current 0.1mA/30V DC
Min. load -
Response time
OFF ON 0.2ms or less/1A
ON OFF 0.4ms or less/1A
Output circuit configuration
Load
Fuse
DC power
supply unit
Fuse
DC power
supply unit
Y
COM1
Y
COM2
