18. Other Extension Devices and Optional Units
(External Dimensions and Terminal Arrangement)

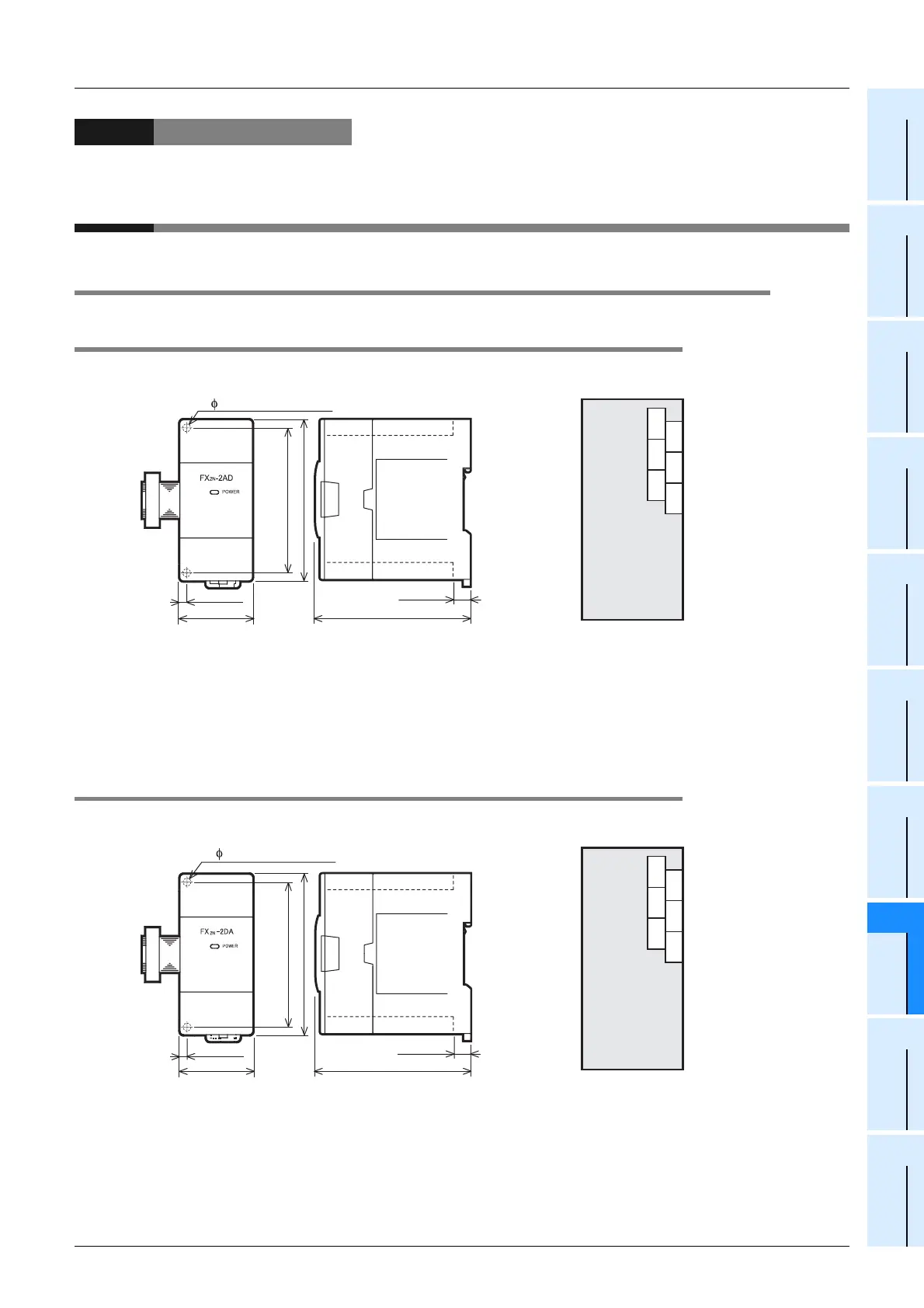

18.1 Special Function Units/Blocks
18.1.1 FX2N-2AD
External Dimensions, Terminal Layout
• MASS(Weight): 0.2kg (0.44lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
18.1.2 FX2N-2DA
External Dimensions, Terminal Layout
• MASS(Weight): 0.2kg (0.44lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-
4.5 mounting holes
IIN2VIN2
VIN1 IIN1 COM
COM
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-
4.5 mounting holes
IOUT2VOUT2
VOUT1 IOUT1 COM1
COM2
