19 Display Module(FX3G-5DM)
19.2 Installation and Removal
269
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

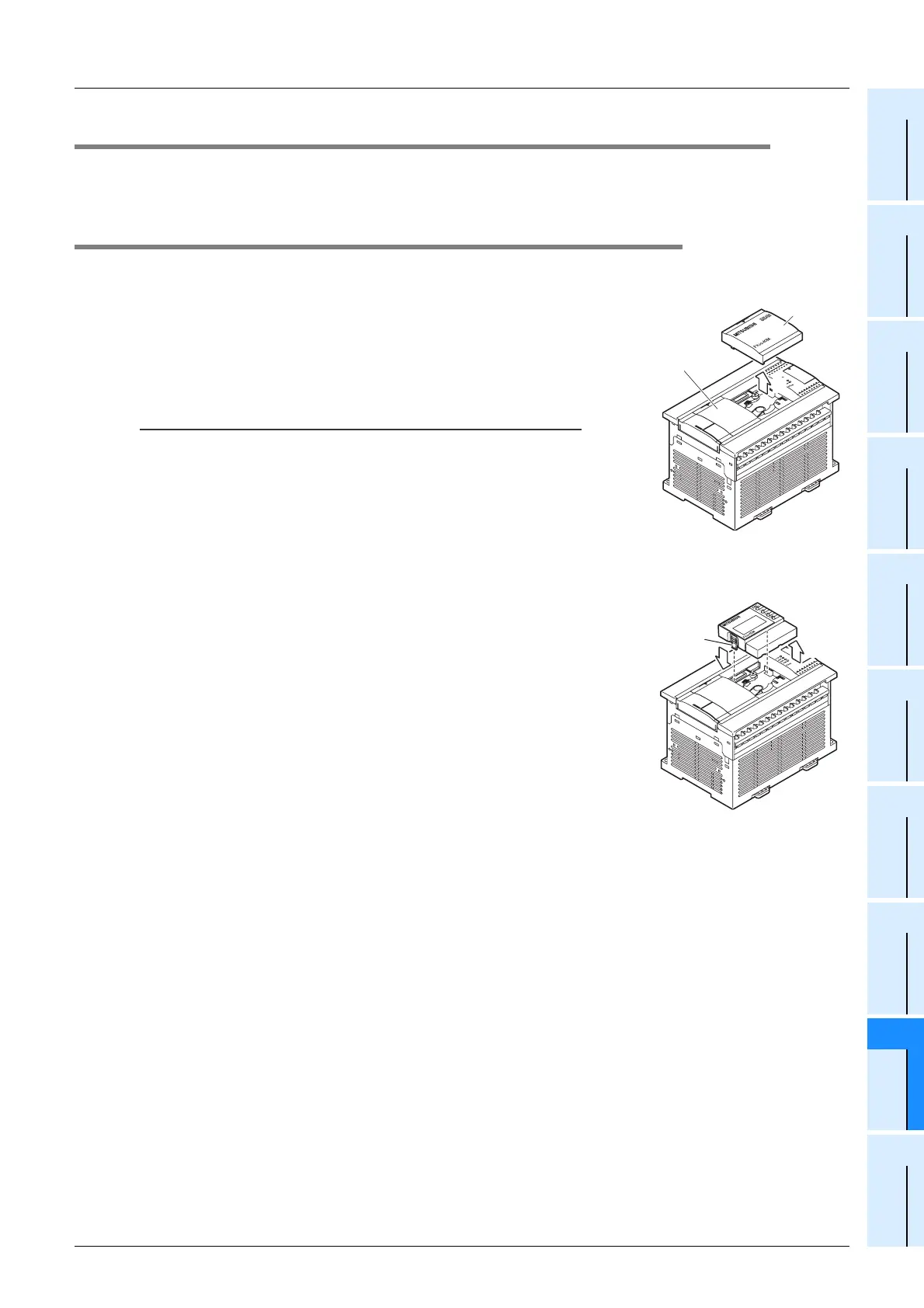

19.2 Installation and Removal
Be sure that the power is OFF when installing the display module.
19.2.1 Installation
(when the expansion board/connector conversion adapter is not used together)
The FX3G-40MT/ES is used as the main unit in this example.
1 Remove the top cover.
Remove the top cover (A in the figure on the right) as shown
in the right figure.
Caution:
Display module cannot attach in the top cover(S) side of a 40/60-
point types main unit.
2 Install/remove the display module.
Attach the display module to the main unit as shown in the
right figure (arrow 2).
Remove the display module while pressing and holding the
display module fixing hook (B in the figure on the right) as
shown in the right figure (arrow 2').
A
1
Top cover(S)
2
B
2'
