Mitsubishi FX3G Series User Manual

18 Other Extension Devices and Optional Units (External Dimensions and
18.1 Special Function Units/Blocks
257
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

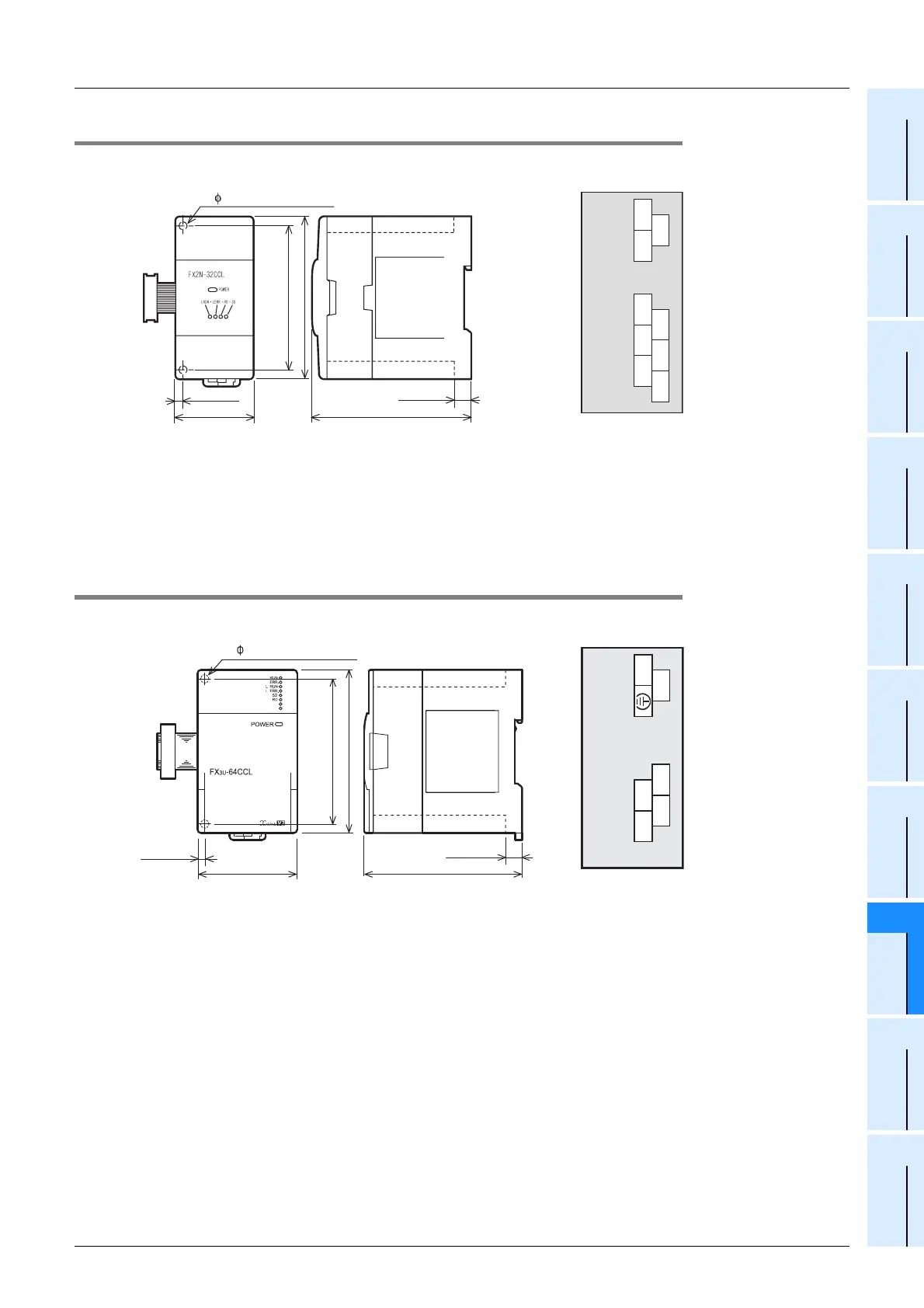

18.1.13 FX2N-32CCL
External Dimensions, Terminal Layout
• MASS(Weight): 0.2kg (0.44lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
18.1.14 FX3U-64CCL
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws for power supply terminal, CC-Link connection terminal
M3.5 screws for CC-Link connection terminal block mounting screws (black)
• The extension cable is already connected to the extension block
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-
4.5 mounting holes
DA DB SLD
DA DB DG
24+
24-
FG
4.5 mounting holes
2-
Unit:mm (inches)
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
4(0.16")
9(0.36")
55(2.17")
DG SLD
DA DB
24+
24-
