16 Input/Output Extension Blocks
16.9 FX2N-8EYT-ESS/UL, FX2N-16EYT-ESS/UL (Transistor Output)
234
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

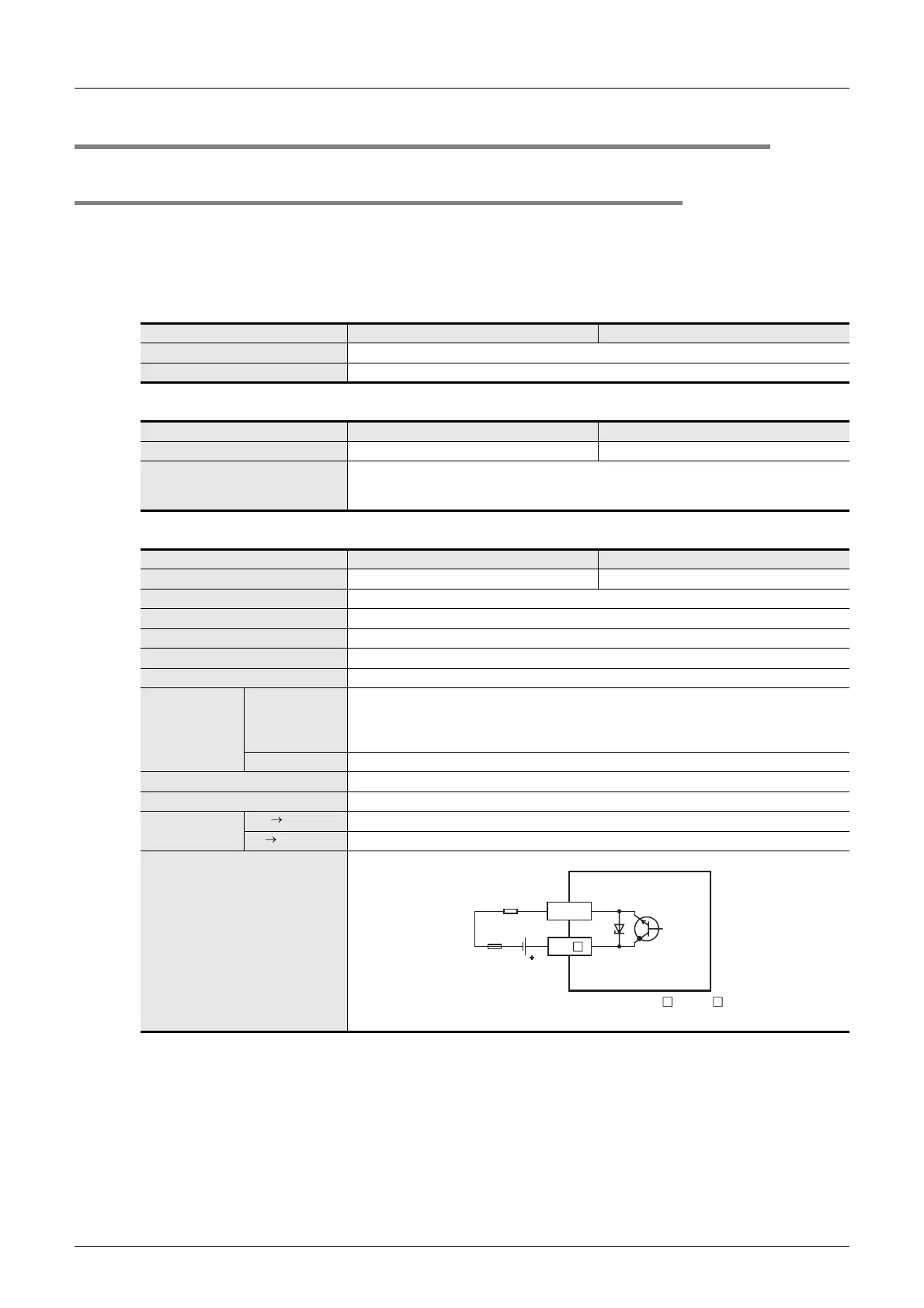

16.9 FX2N-8EYT-ESS/UL, FX2N-16EYT-ESS/UL (Transistor Output)
16.9.1 Product specifications
The generic specifications are identical to the main unit specifications.
→ Refer to Section 4.1 for generic specifications.
For external wiring, refer to the following chapters.
→ Refer to Chapter 12 for output wiring.
1. Power supply specifications
2. Weight and Other specifications (External dimensions are described later.)
3. Output specifications (Transistor output type)
Item FX2N-8EYT-ESS/UL FX2N-16EYT-ESS/UL
Product type FX2N extension block
Rated voltage 24V DC (supplied from main unit and input/output powered extension unit)
Item FX2N-8EYT-ESS/UL FX2N-16EYT-ESS/UL
MASS (Weight) 0.2kg (0.44lbs) 0.3kg (0.66lbs)
Other
• The extension cable is already connected to the extension block.
• Accessories: Label for indication of input/output number
• The DIN46277 rail (width: 35 mm (1.38")) or direct installation.
Item FX2N-8EYT-ESS/UL FX2N-16EYT-ESS/UL
Output Points 8 points 16 points
Connection type Vertical terminal block (M3 screws)
Output unit/type Transistor/source output
External power supply 5 to 30V DC
Output circuit insulation Photo-coupler insulation
Indication of output operation Activation of the photo-coupler will light the LED indicator lamp on panel.
Max. load
Resistance load
0.5A/point
The total load current per common should be as follows:
• 4 output points/common: 0.8A or less
• 8 output points/common: 1.6A or less
Inductive load 12W/24V DC
Open circuit leakage current 0.1mA/30V DC
Min. load -
Response time
OFF ON 0.2ms or less for 200mA (at 24V DC)
ON OFF 0.2ms or less for 200mA (at 24V DC)
Output circuit configuration
common number applies to the of [+V ].
Load
DC power
supply
Fuse
Y
+V
To Next Page
