Mitsubishi FX3G Series User Manual

17 Extension Power Supply Unit
17.2 Specifications
249
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

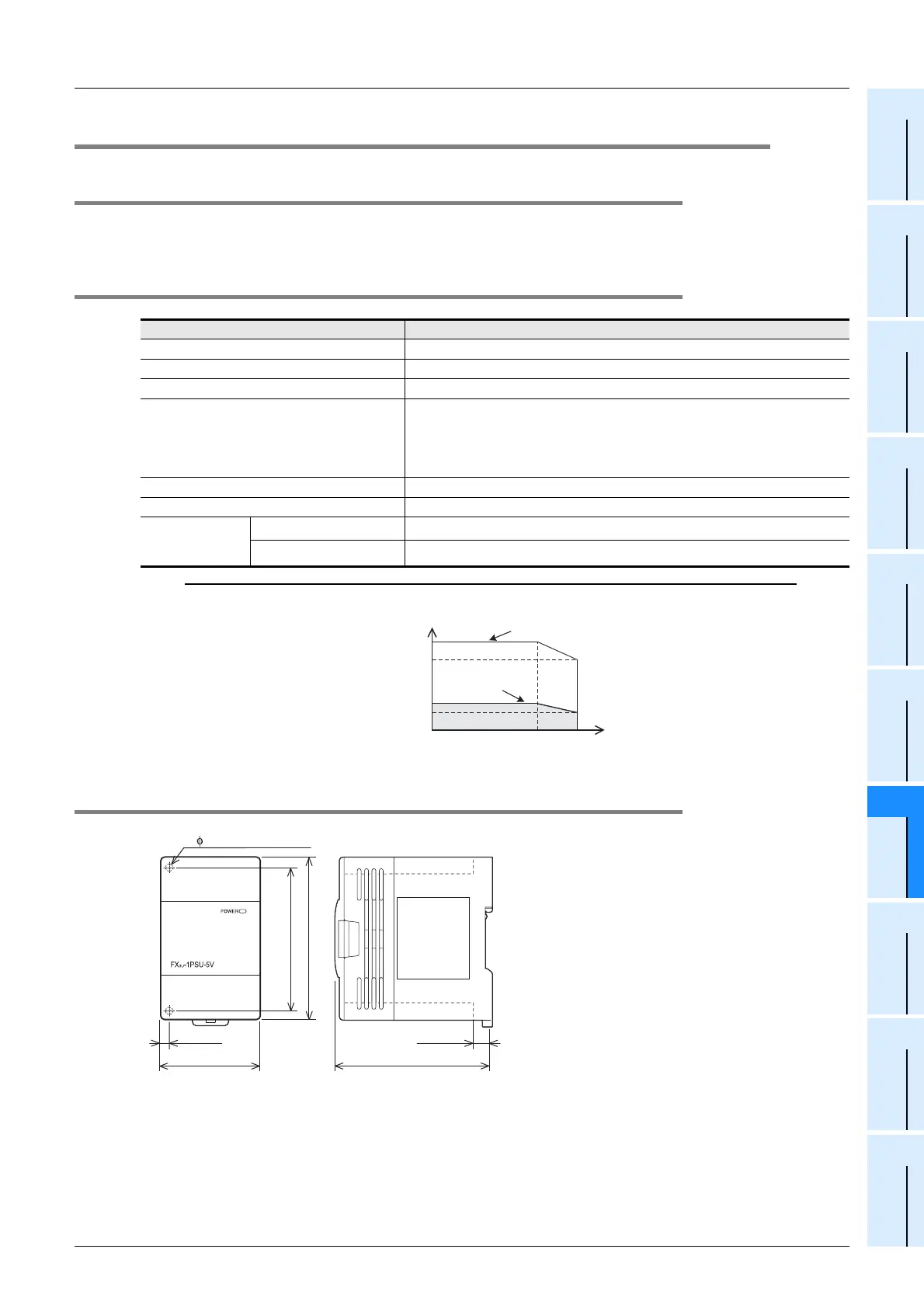

17.2 Specifications
17.2.1 Generic Specifications
The generic specifications are the same as those for the main unit.
→ For the generic specifications, refer to Section 4.1.
17.2.2 Performance Specifications
*1. The output current depends on the ambient temperature as shown in the dirating curve below.
17.2.3 External Dimensions
Items Specifications
Supply voltage 100-240V AC
Allowable supply voltage range 85-264V AC
Rated frequency 50/60Hz
Allowable instantaneous power failure time
The allowable momentary power failure time depends on the power supply used.
• 100V AC power supply system:
The operation is continued to the momentary power failure for 10 or less ms.
• 200V AC power supply system:
The operation is continued to the momentary power failure for 100 or less ms.
Rush current 30A max. 5ms or less/100V AC, 65A max. 5ms or less/200V AC
Power consumption 20W Max.
Output current
(Internal for
supply)
24V DC
0.3A
*1
5V DC
1A
*1
0.8
1.0
Ambient temperature [°C]
5540
0.3
0.2
5V DC
Output current [A]
24V DC
0
Derating curve
2- 4.5 mounting holes
55(2.17")
87(3.43")
80(3.15")
(mouning hole pitch)
90(3.55")
4(0.16")
Unit:mm (inches)
9(0.36")
