Laser Optics
SM 4-19 M065/M066
Replacement
and
Adjustment
4.4.4 LDU SHUTTER MOTOR
1. Duplex unit ( p.4-116)
2. Paper feed unit (
p.4-94)

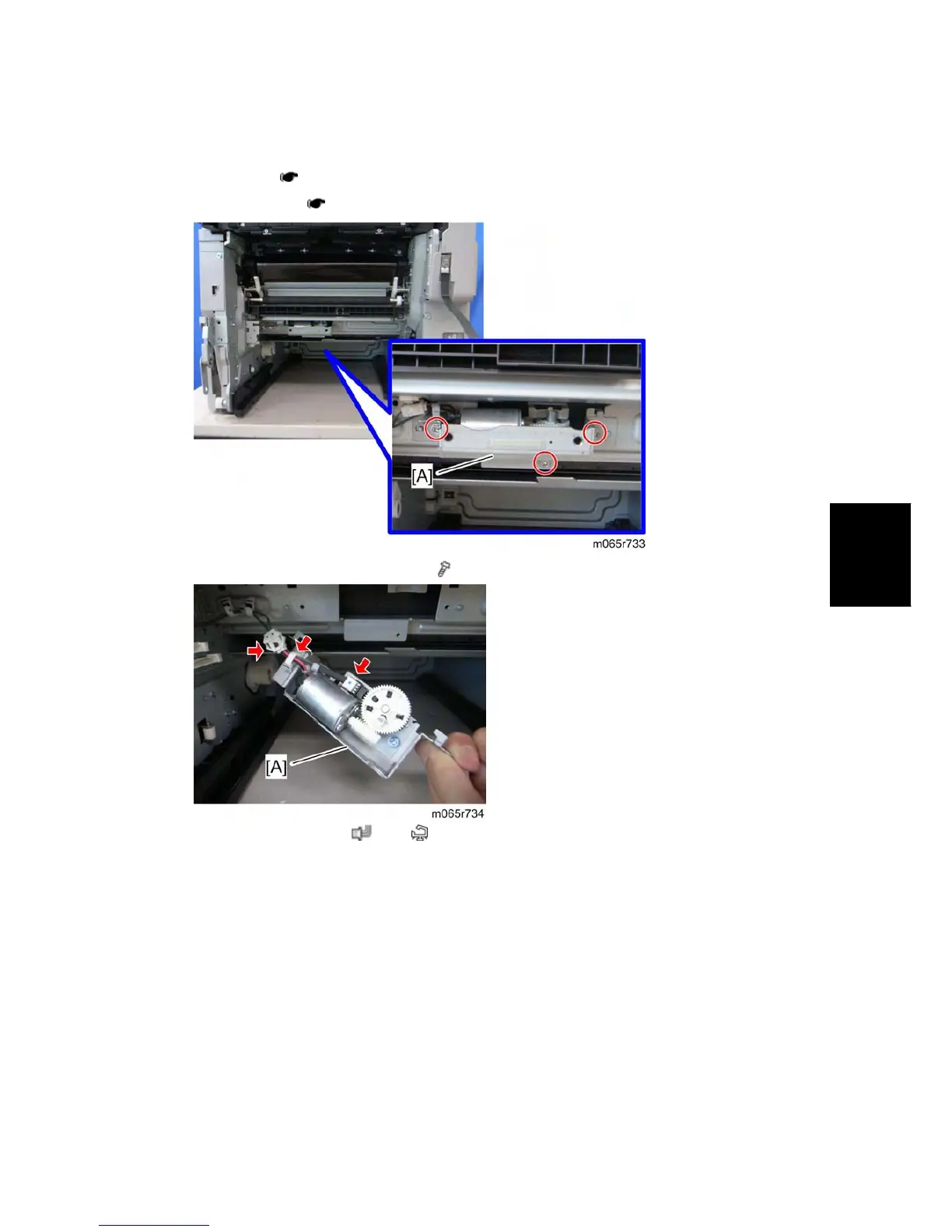

3. Release the LDU shutter motor [A] (
x 3).
4. LDU shutter motor [A] (
x 2, x 1).
