Paper Exit
M065/M066 4-1
12
SM

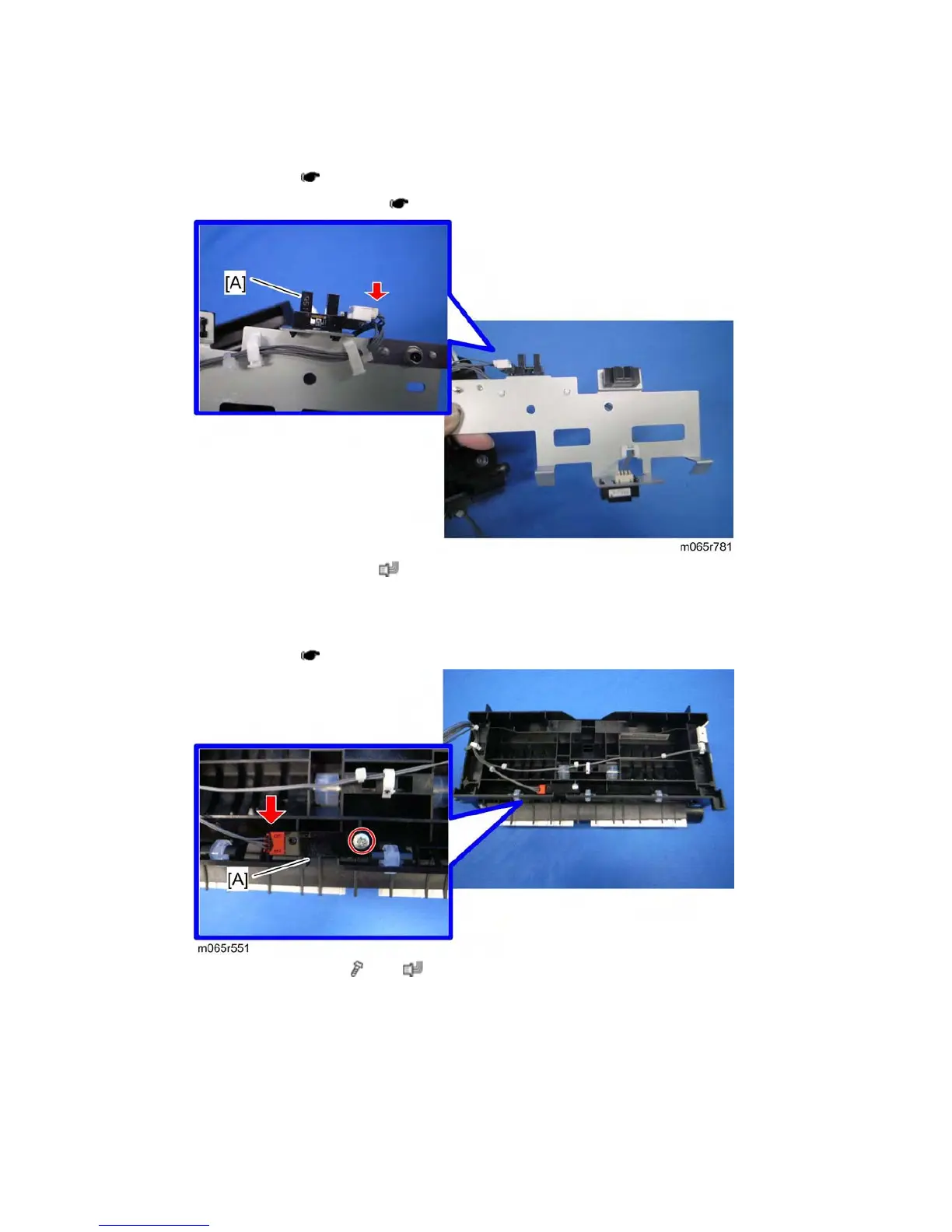

4.11.4 PAPER
OVERFLOW
SENSOR
1.
Paper exit unit (
p.4-107)
2.
Release the sensor bracket (
p.4-109 "Paper Exit Sensor").
3.
Paper overflow sensor [A] (
x 1, hooks)
4.11.5 FUSING
EXIT
SENSOR
1.
Paper exit unit (
p.4-107)
2.
Fusing exit sensor [A] (
x
1,
x
1)
203
205
