Drive Unit
SM 4-65 M065/M066
Replacement
and
Adjustment
4.8.5 ITB UNIT/ DRUM-K/ DEVELOPMENT-K MOTOR
1. Right cover ( p.4-4)

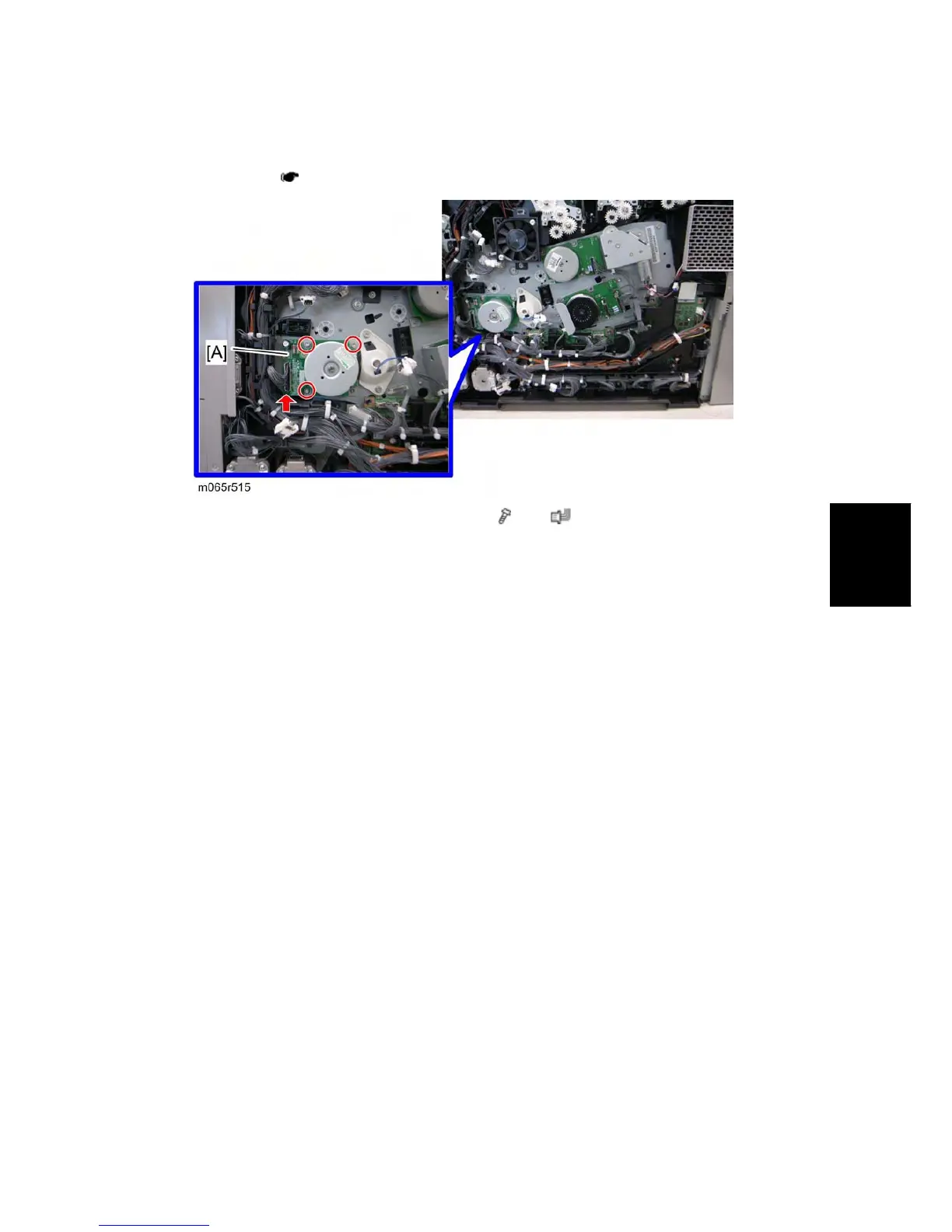

2. ITB unit/ Drum-K/ Development-K motor [A] (
x 3, x 1)
