Electrical Components
M065/M066 4-138 SM

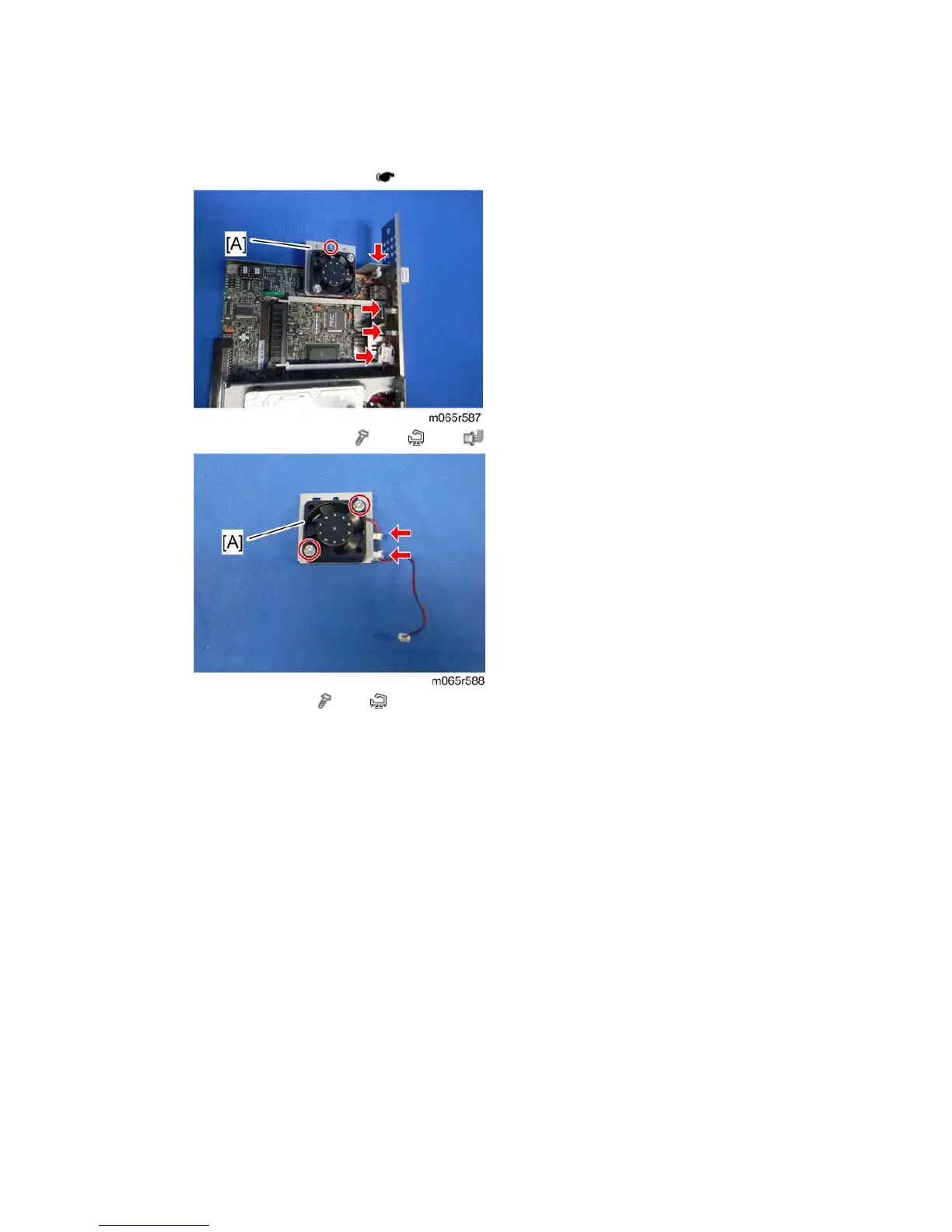

4.13.3 CONTROLLER FAN
1. Pull out the controller unit ( p.4-136 "HDD")
2. Controller fan base [A] (
x 1, x 3, x 1)
3. Controller fan [A] ( x 2, x 2)
When installing the controller fan
Make sure that the controller fan is installed with its decal facing to the front of the machine.
