Duplex Unit
M065/M066 4-120 SM

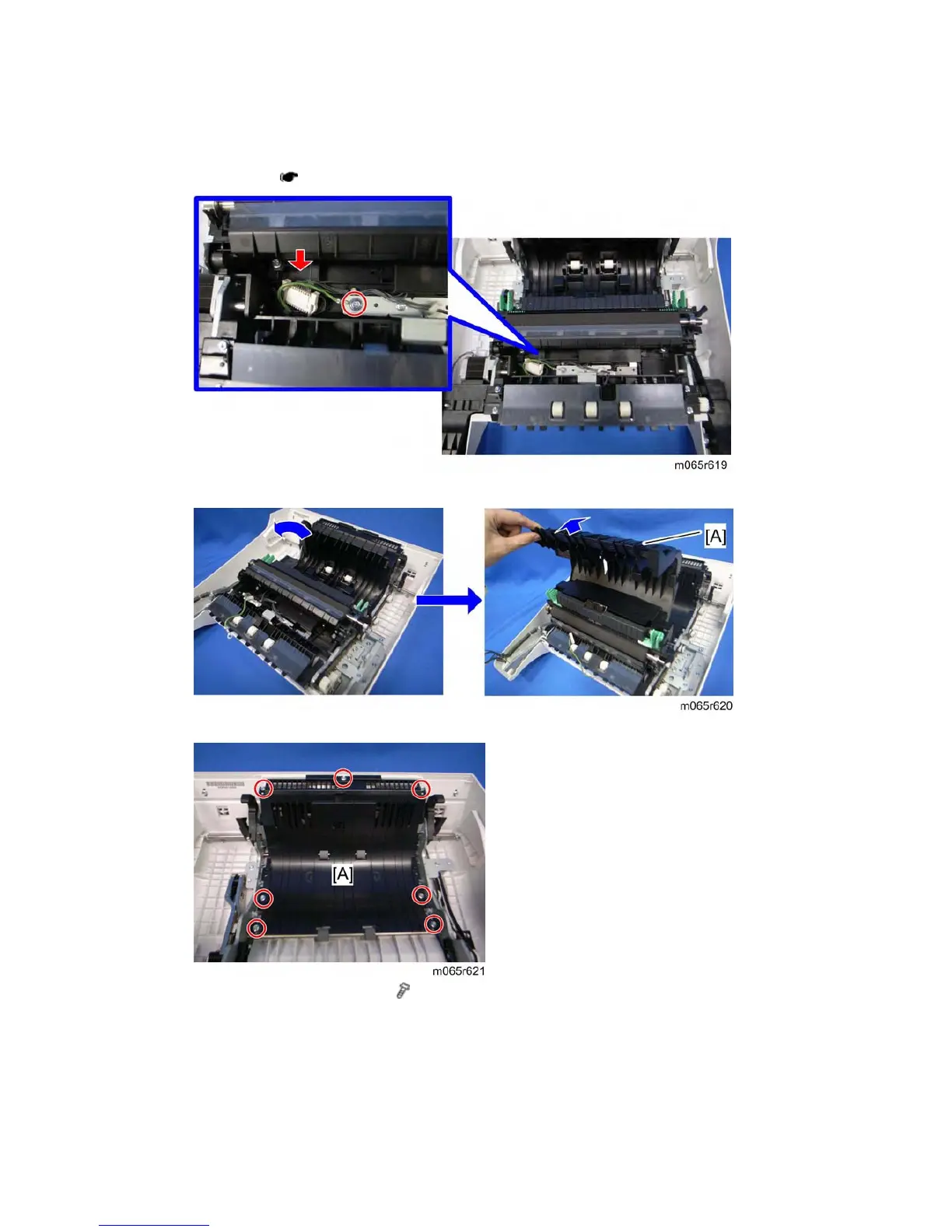

4.12.3 DUPLEX ENTRANCE SENSOR
1. Duplex unit ( p.4-116)
2. Disconnect the connector and remove the ground screw.
3. Duplex lower guide plate [A]
4. Duplex upper guide plate [A] (
x 7)
