Drive Unit
SM 4-73 M065/M066
Replacement
and
Adjustment
4.8.15 DRIVE UNIT FAN
1. Rear cover ( p.4-5)
2. Right cover (
p.4-4)
3. Inner right rear cover (
p.4-13)

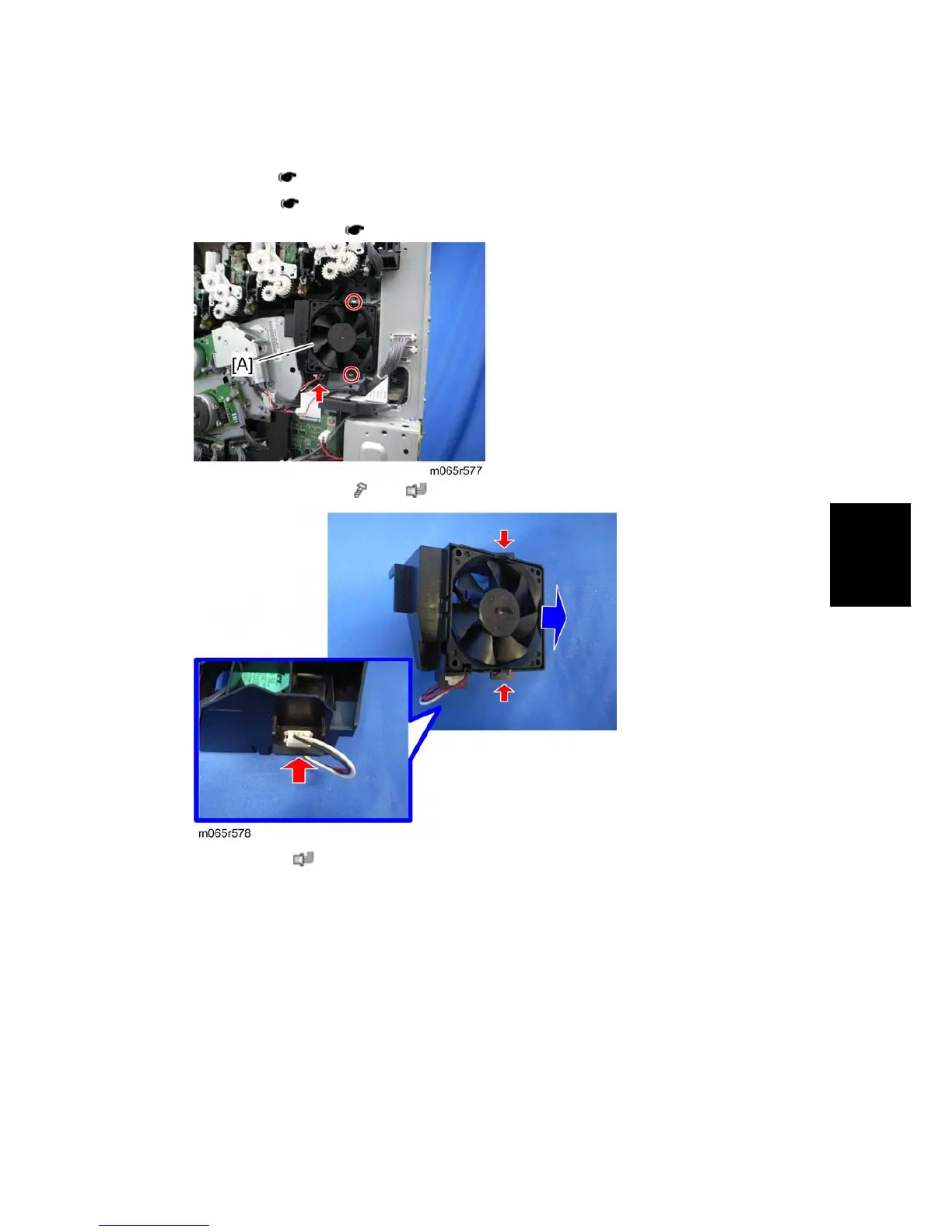

4. Drive unit fan base [A] ( x 2, x 1)
5. Drive unit fan (
x 1, hooks)
When installing the drive unit fan
Make sure that the drive unit fan is installed with its decal facing to the left of the machine.
