Paper Feed
M065/M066 4-102 SM

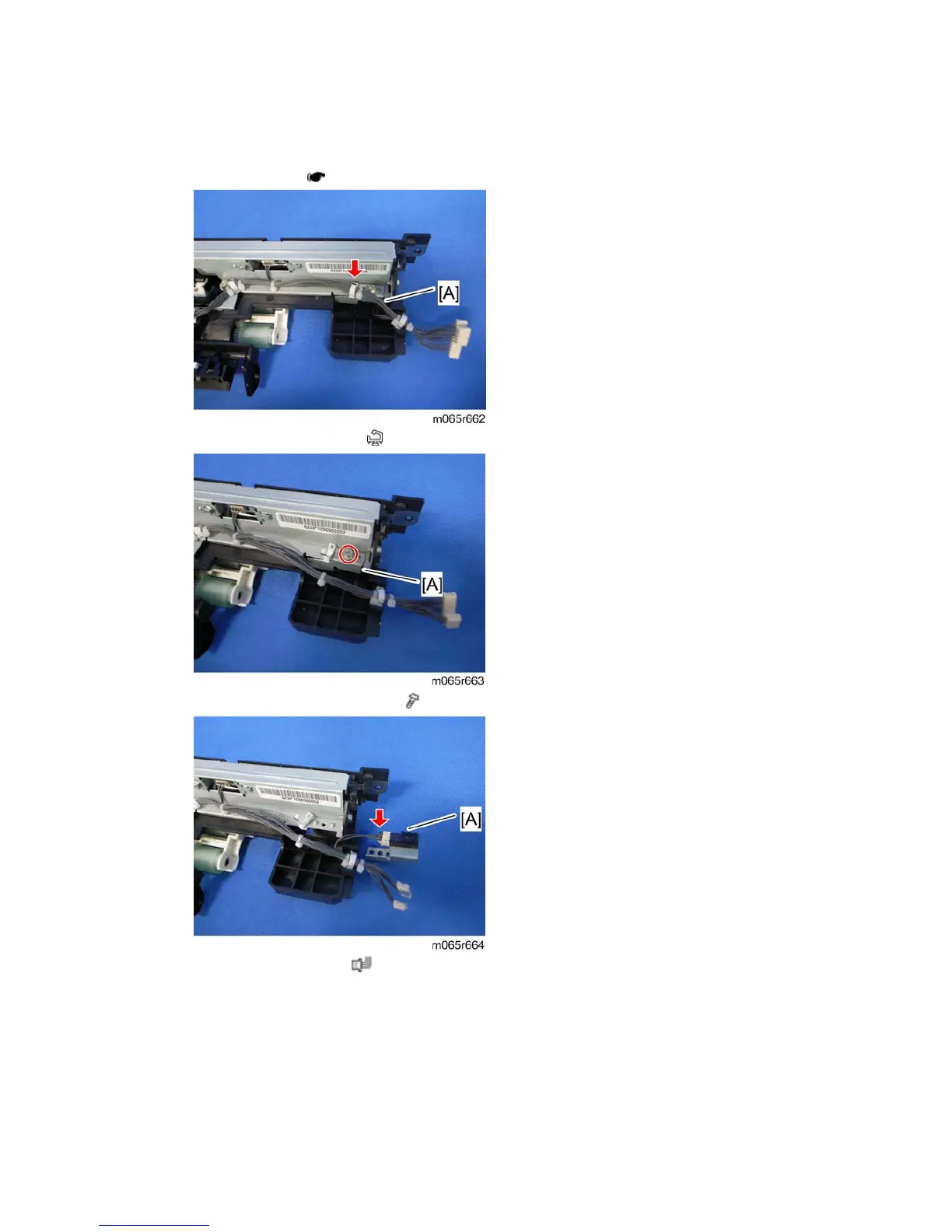

4.10.10 PAPER FEED SENSOR
1. Paper feed unit ( p.4-94)
2. Release the harness [A] (
x 1)
3. Paper feed sensor bracket [A] ( x1)
4. Paper feed sensor [A] ( x1, hooks)
