Overview
SM 1-5 M065/M066
Product
Information

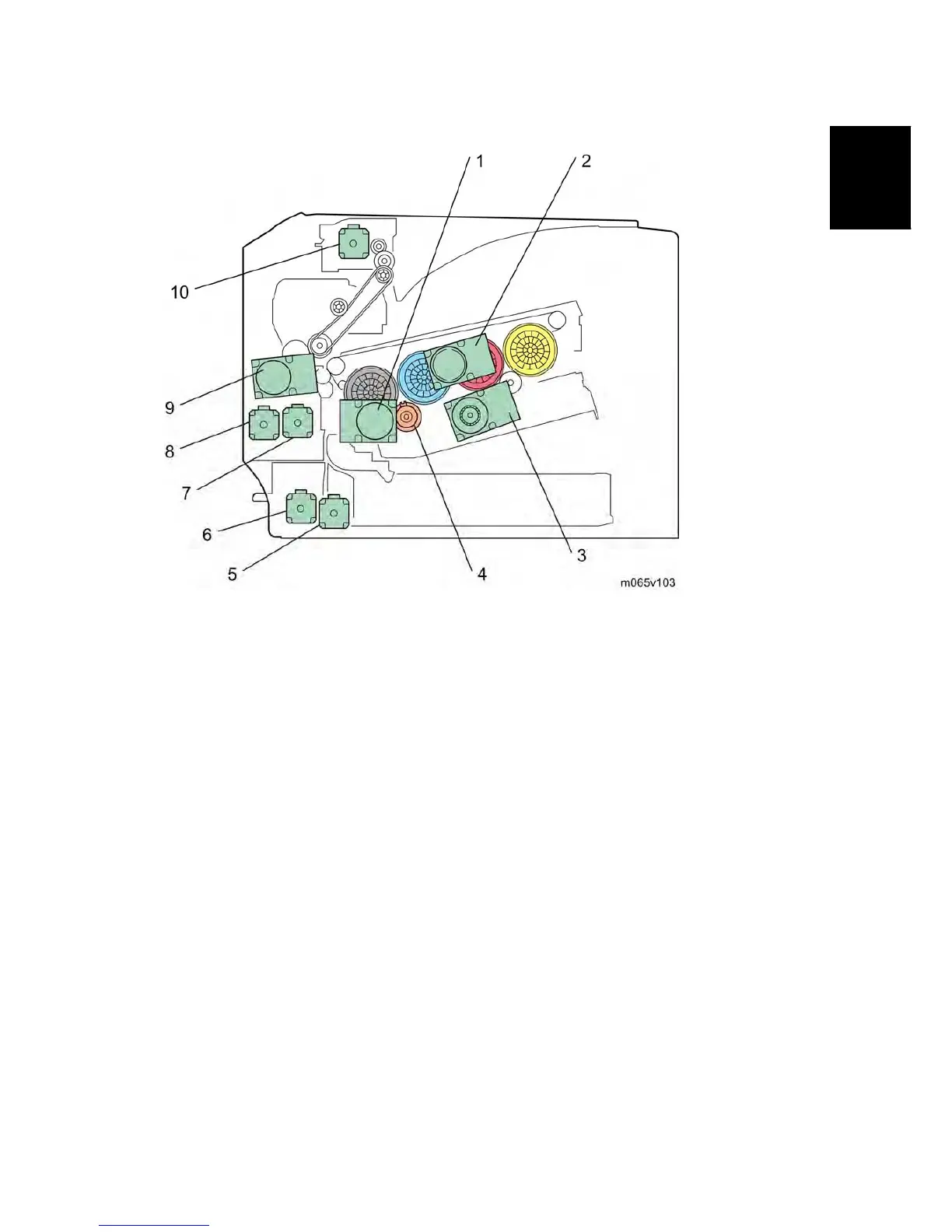

1.3.3 DRIVE LAYOUT
1. ITB Unit/ Drum-K/ Development-K Motor:
This controls the OPC for black, development unit for black, and ITB unit.
2. Drum Motor: CMY:
This controls the OPCs for cyan, magenta, and yellow.
3. Development Motor: CMY:
This controls the color development units (cyan/ magenta/ yellow).
4. Development Clutch: K:
This controls the drive power to the development unit for black.
5. Paper Feed Motor:
This controls the paper feed mechanisms (tray 1).
6. Vertical Transport Motor:
This controls the vertical transport roller.
7. Registration Motor:
This controls the registration rollers.
8. Duplex/By-pass Motor:
This controls the duplex entrance, relay, exit, and by-pass feed rollers.
9. Fusing/ Paper Exit Motor:
This controls the fusing unit and paper exit rollers.
10. Inverter Motor:
This controls the inverter roller.
