Ricoh M065 User Manual

Drive Unit
SM 4-55 M065/M066
Replacement
and
Adjustment
4.8 DRIVE UNIT

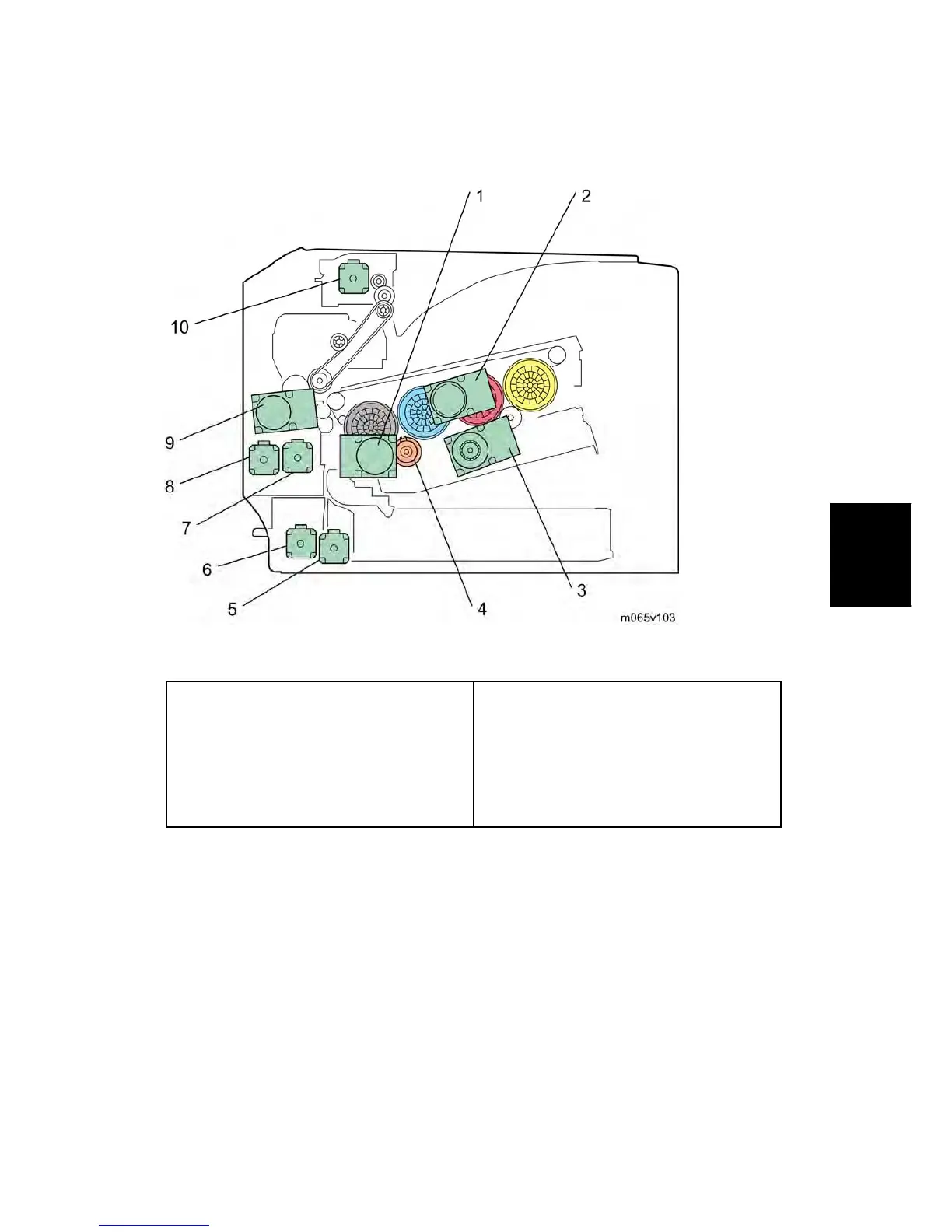

The drawing above shows the drive layout.
1. ITB unit /drum-K/ development-K motor
2. Drum motor: CMY
3. Development motor: CMY
4. Development clutch: K
5. Paper feed motor
6. Vertical transport motor
7. Registration motor
8. Duplex/ by-pass motor
9. Fusing/ paper exit motor
10.Inverter motor
