Image Transfer
SM 4-49 M065/M066
Replacement
and
Adjustment

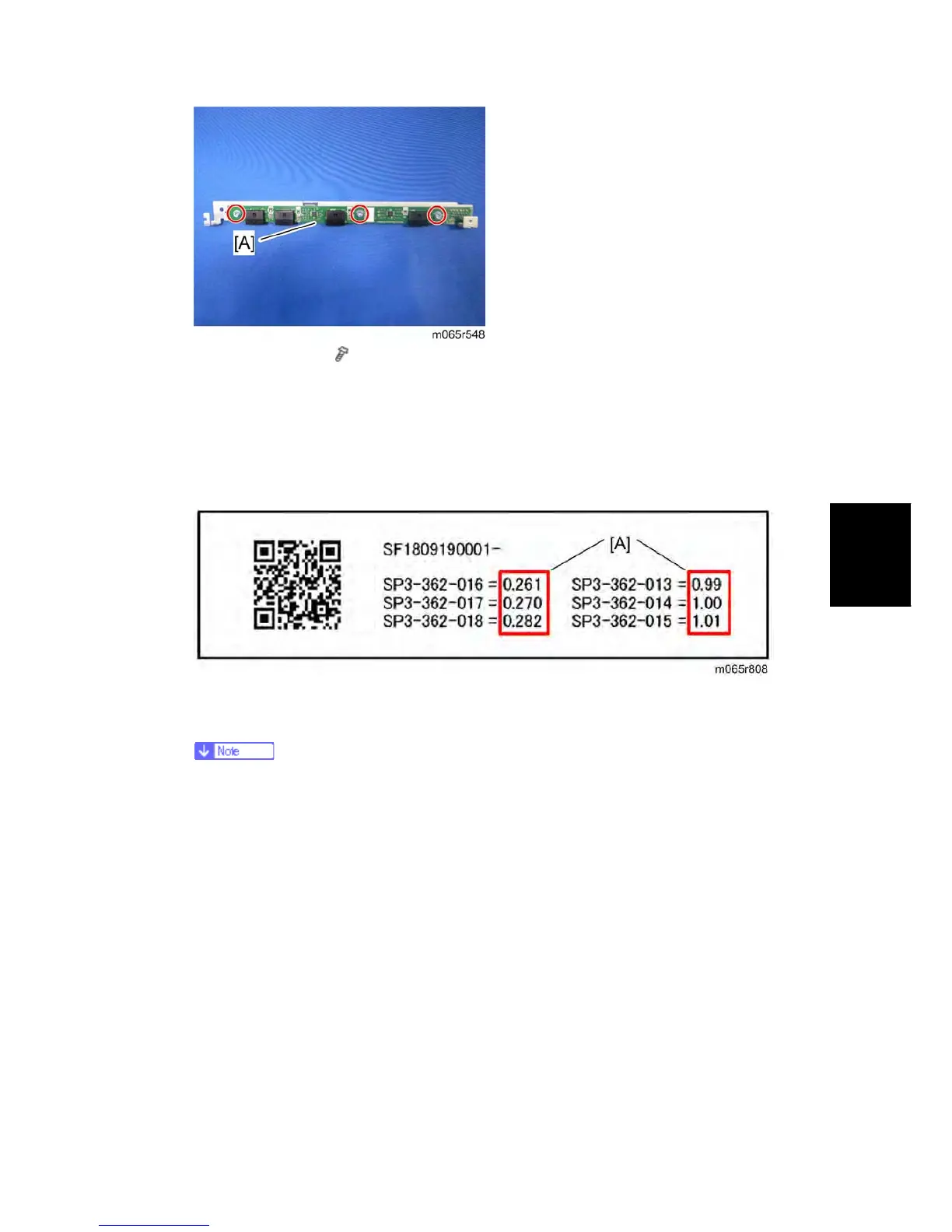

6. ID sensor board [A] (
x 3)
After installing a new ID sensor board
Do the following adjustment after installing a new ID sensor board.
1. Plug in and turn on the main power switch of the machine.
2. Enter the SP mode.
3. Input all correction coefficients [A] for the ID sensor with the SP modes referring to the
barcode sheet provided with the new ID sensor board.
 For example, input "0.99" with SP3-362-013.
4. Exit the SP mode.
To Next Page
