Duplex Unit
SM 4-129 M065/M066
Replacement
and
Adjustment

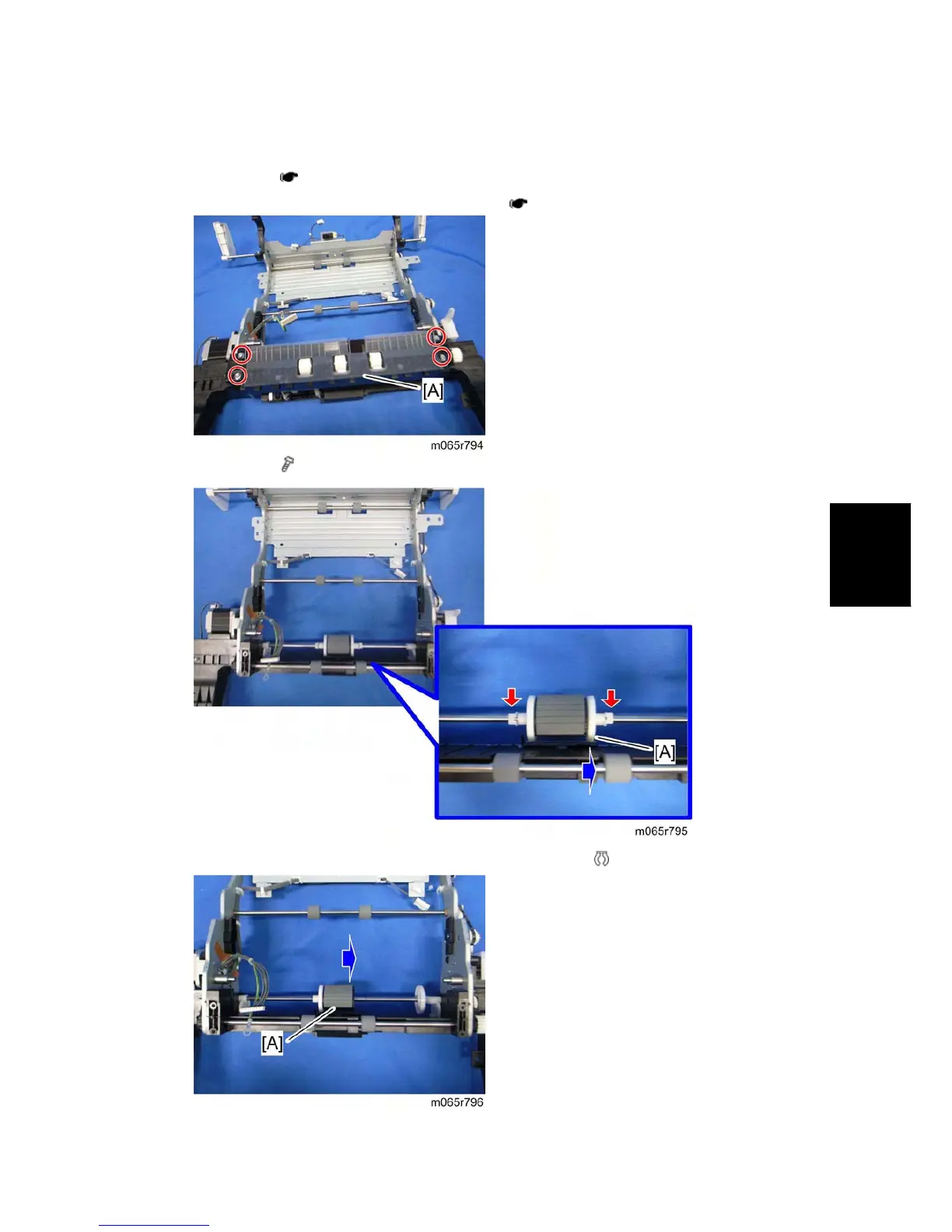

4.12.8 BY-PASS FEED ROLLER, FRICTION PAD
1. Duplex unit ( p.4-116)
2. Duplex/By-pass motor bracket with the frame (
p.4-124 "Duplex/By-pass Motor")
3. Guide plate (
x 4)
4. Slide the roller holder [A] in the direction of the blue arrow (
x 2).
