Fusing
M065/M066 4-88
SM
4.9.9

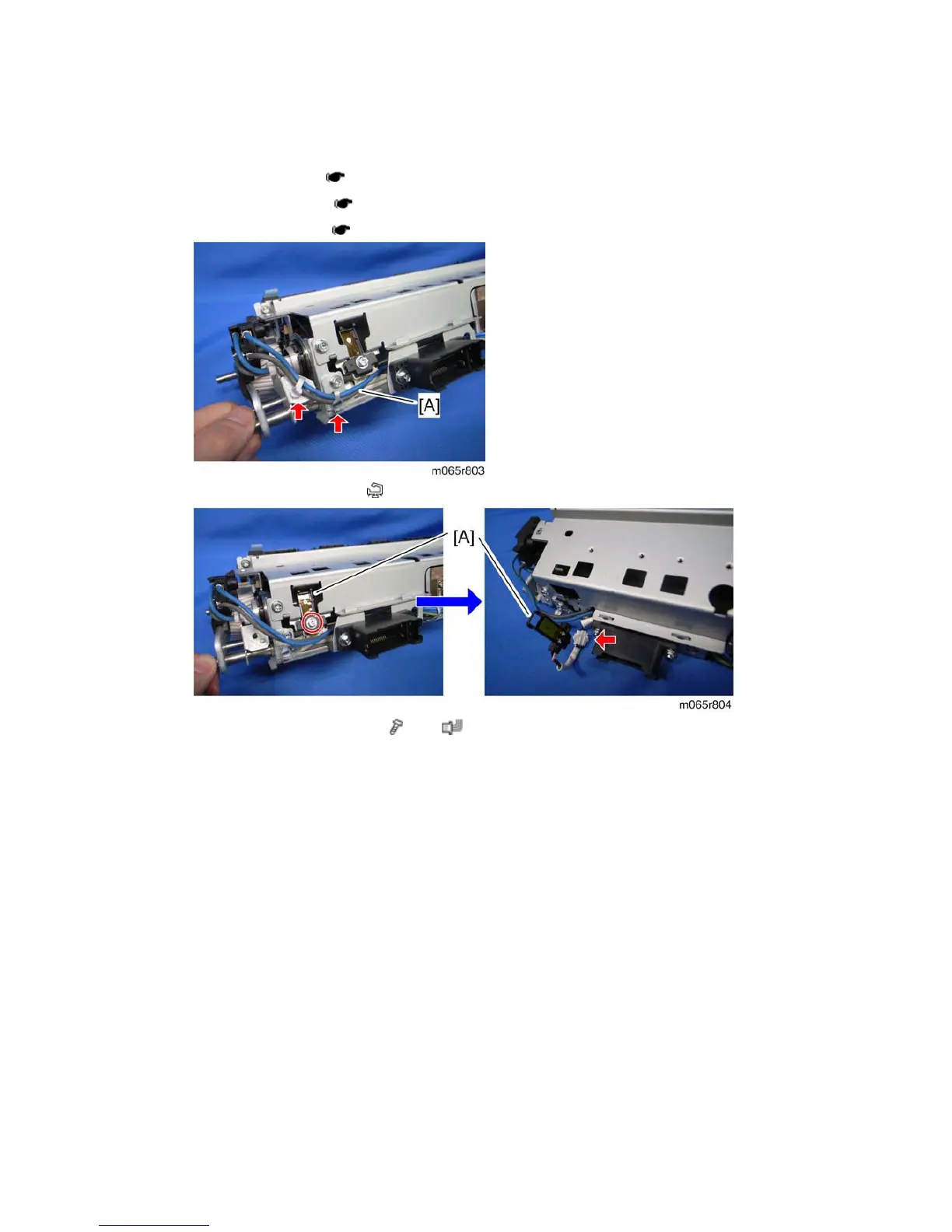

HEATING ROLLER THERMISTOR
1.
Fusing front cover (
p.4-74 "Cleaning Unit")
2.
Fusing upper cover (
p.4-75 "Pressure Roller Fusing Lamp")
3.
Fusing lower cover (
p.4-75 "Pressure Roller Fusing Lamp")
4.
Release the harness [A] (
x
2).
5.
Heating roller thermistor [A] (
x
1,
x
1)
