Electrical Components
M384 8 SM

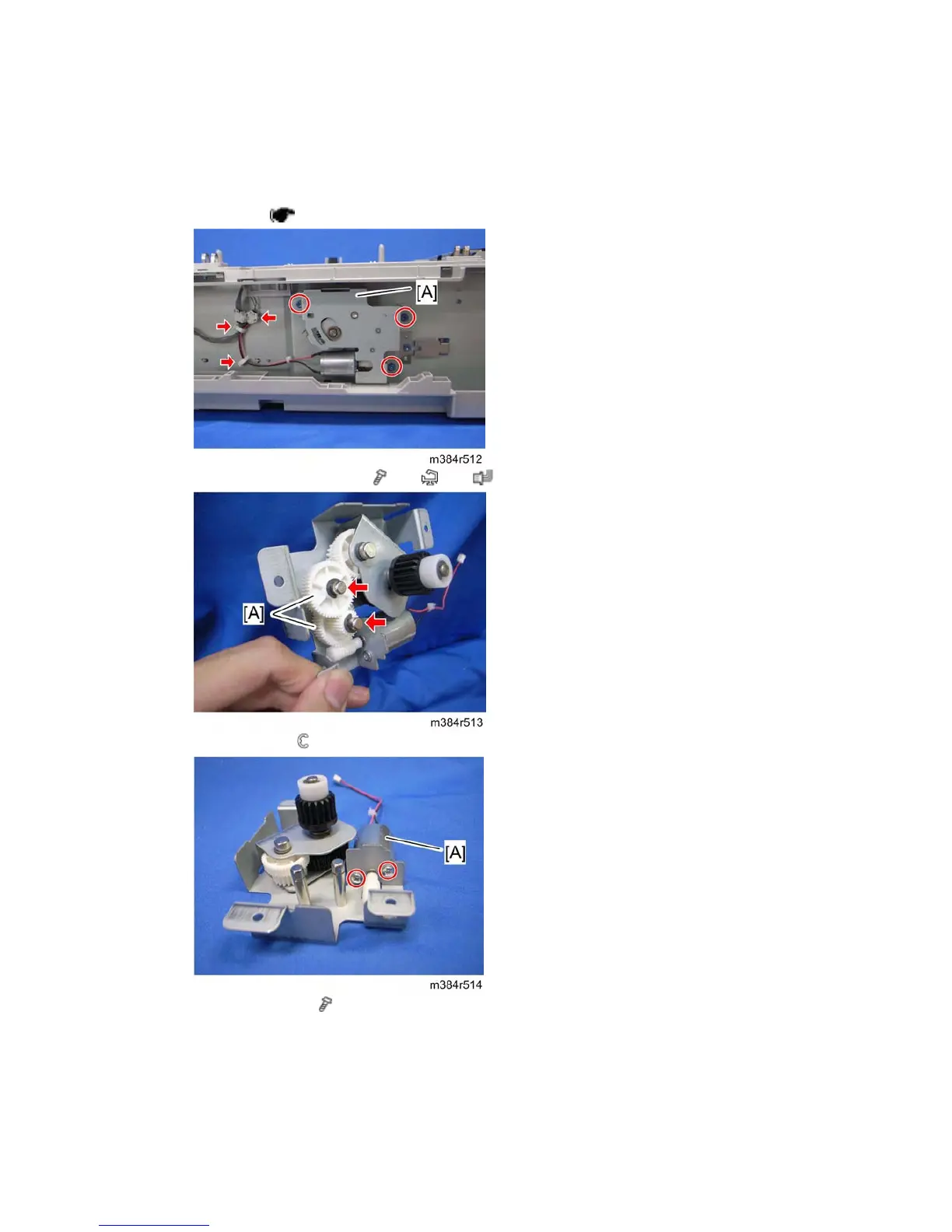

1.3.5 TRAY LIFT MOTOR
1. Left cover ( p.1)
2. Tray lift motor bracket [A] (
x3, x2, x1)
3. Two gears [A] (
x1 each)
4. Tray lift motor [A] ( x2)
