Image Transfer
M065/M066 4-48 SM

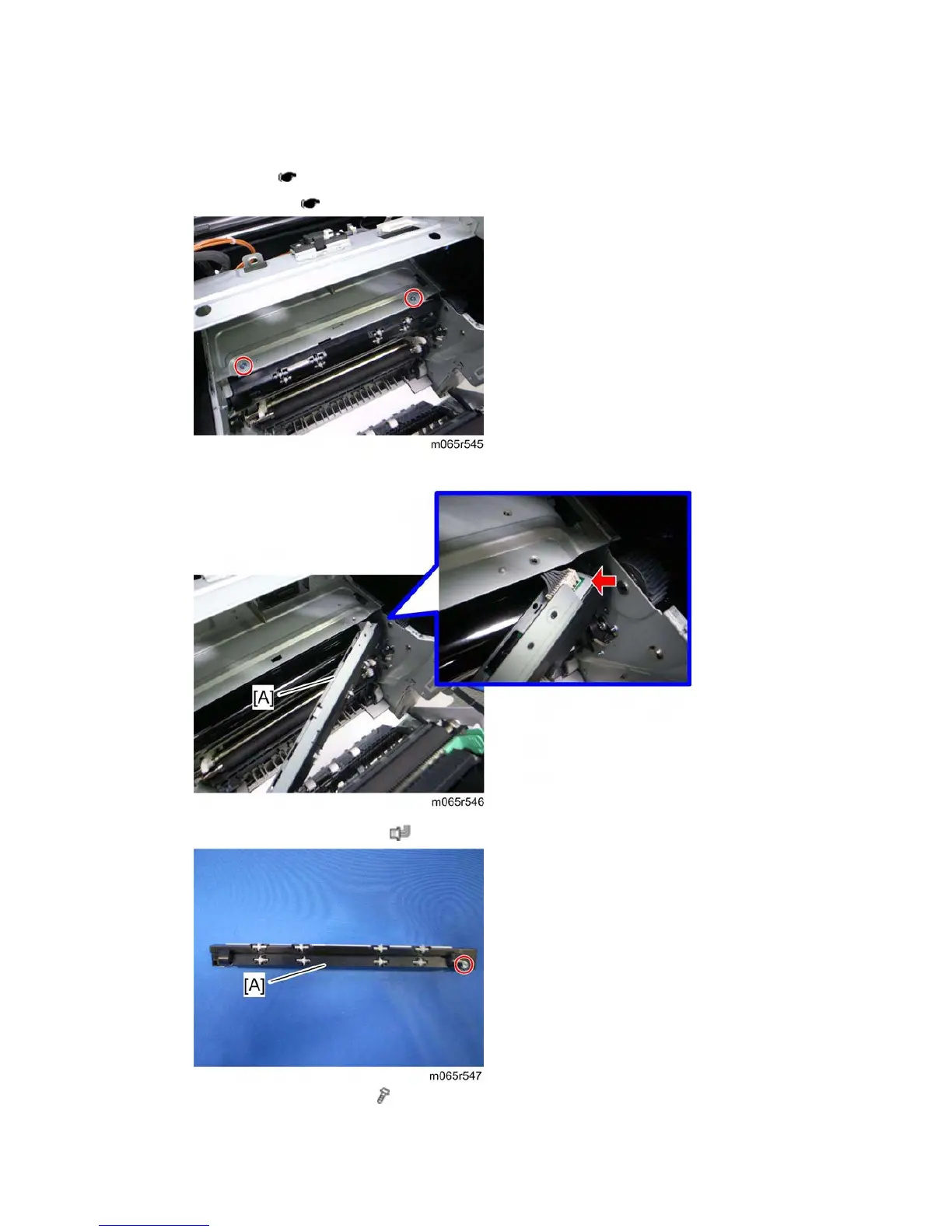

4.6.5 ID SENSOR BOARD
1. Fusing unit ( p.4-74)
2. Paper exit unit (
p.4-107)
3. Remove the two screws.
4. ID sensor board bracket [A] (
x 1)
5. ID sensor board cover [A] ( x 1)
