Tray Heater
M065/M066 2-28 SM

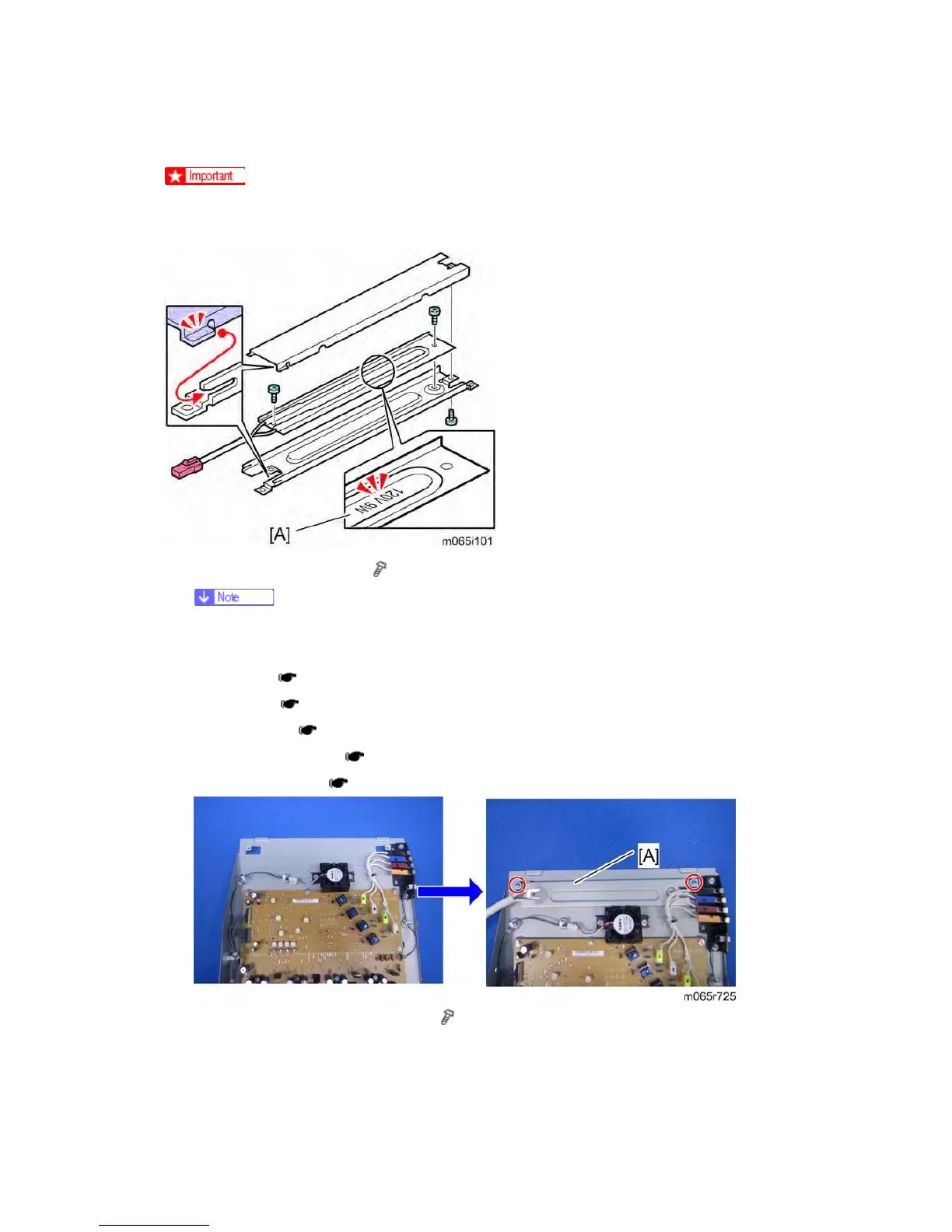

2.6.2 TRAY HEATER (MAINFRAME)
 Before installing, make sure that the power source rating of the tray heater is same
as the machine.
1. Assemble the tray heater (
x 3).
 Before installing the tray heater, check if the destination is correct.
 120V 9W: NA, 230V 9W: EU/AA
2. Rear cover (
p.4-5)
3. Right cover (
p.4-4)
4. Controller box (
p.4-143)
5. Inner left lower cover (
p.4-11)
6. HVPS: CB bracket (
p.4-148 "HVPS: CB Board")
7. Install the heater [A] on the bracket (
x 2).
