Fusing
SM 4-91 M065/M066
Replacement
and
Adjustment

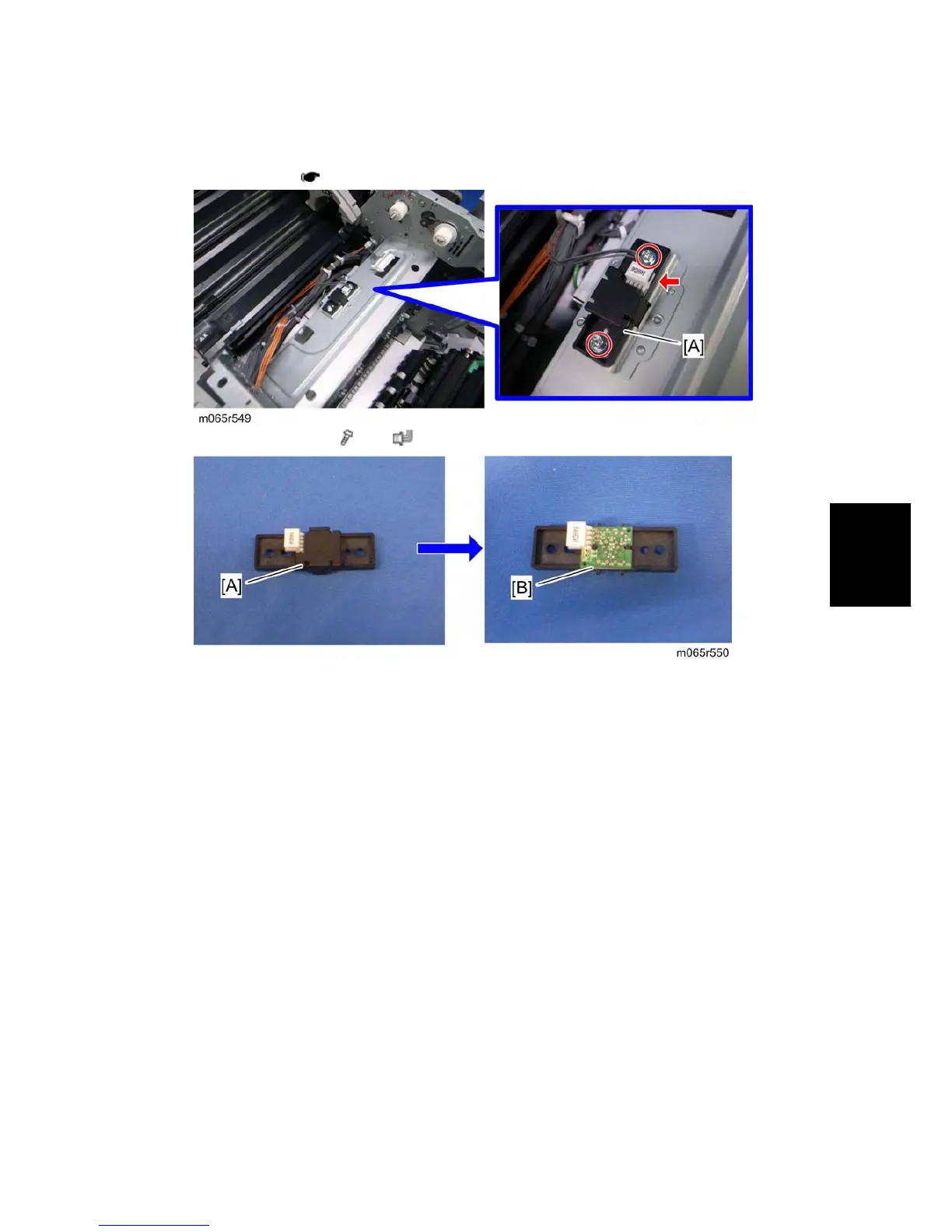

4.9.12 THERMOPILE
1. Paper exit unit ( p.4-107)
2. Thermopile base [A] (
x 2, x 1)
3. Thermopile cover [A] (hooks)
4. Thermopile [B]
