Duplex Unit
SM 4-123 M065/M066
Replacement
and
Adjustment

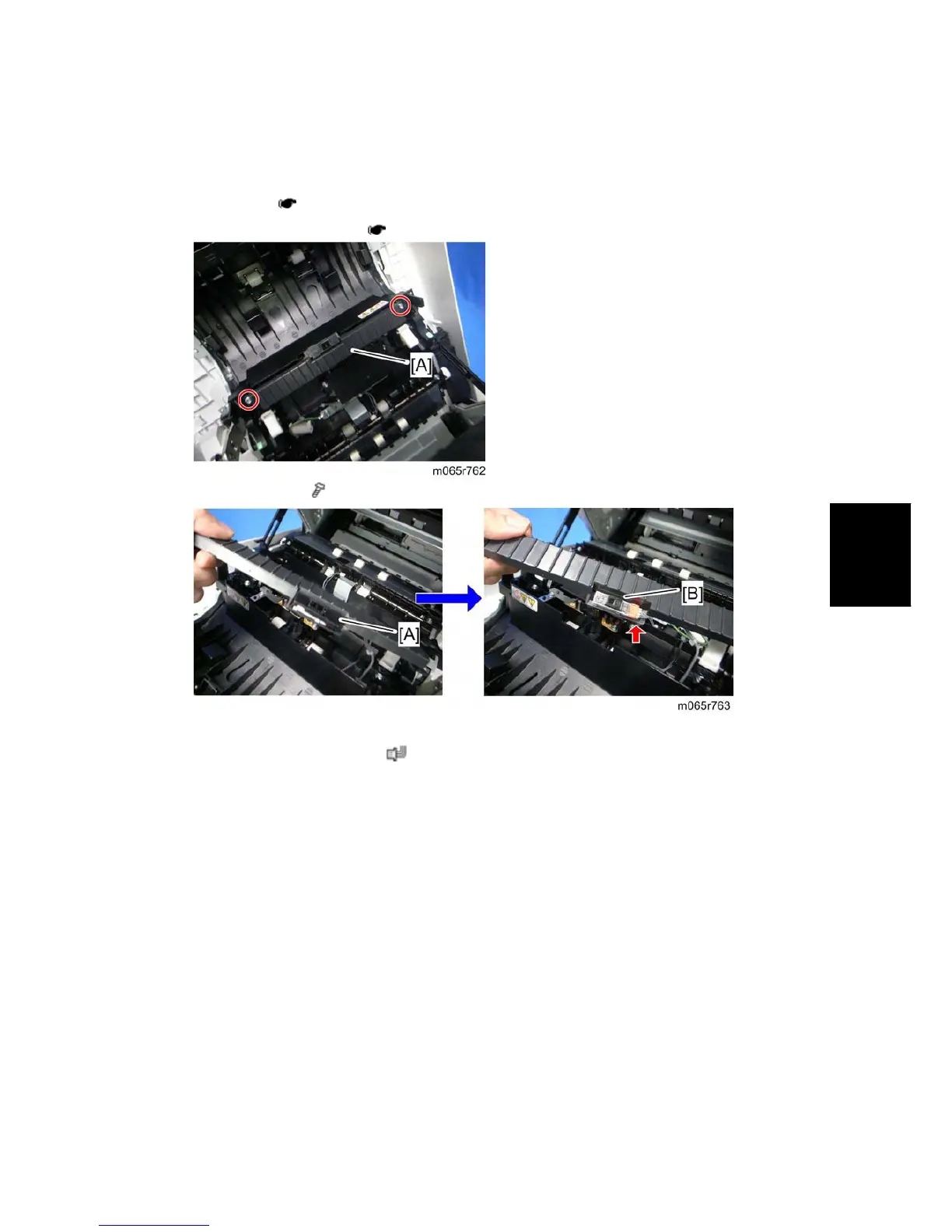

4.12.5 FUSING ENTRANCE SENSOR
1. Open the duplex unit.
2. Fusing unit (
p.4-74)
3. Paper transfer roller unit (
p.4-50)
4. Sensor base [A] ( x 2)
5. Sensor cover [A] (hooks)
6. Fusing entrance sensor [B] (
x 1, hooks)
