Image Transfer
M065/M066 4-40 SM

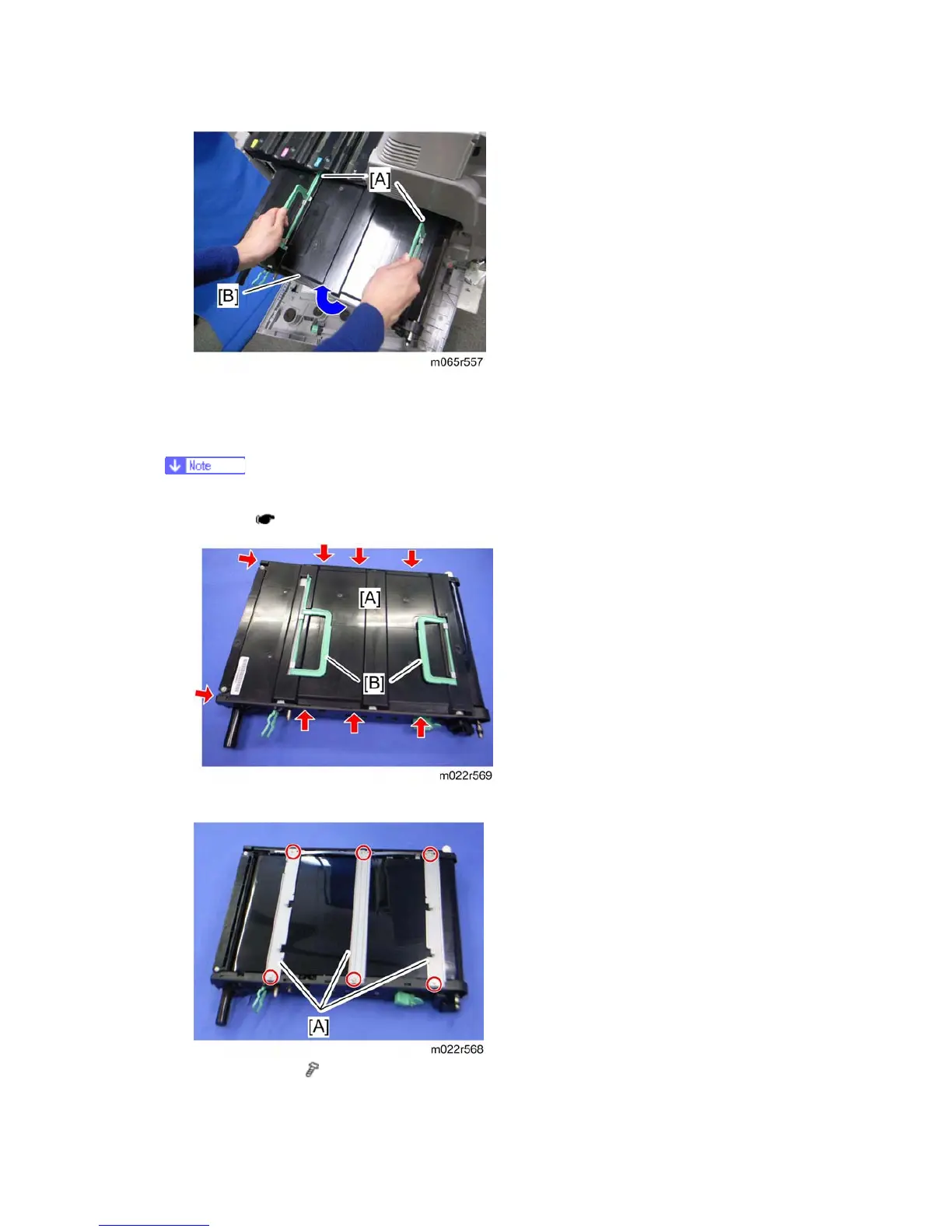

6. Grasp the handles [A], and then pull out the ITB unit fully [B].
7. Grasp the handles [A], and then lift the ITB unit [B].
4.6.2 IMAGE TRANSFER BELT
 Do not touch or damage the surface of the image transfer belt during servicing.
1. ITB unit (
p.4-38)
2. ITB unit cover [A] and the handles [B] (8 hooks).
3. Three stays [A] ( x 2 each)
