Paper Feed
SM 4-105 M065/M066
Replacement
and
Adjustment

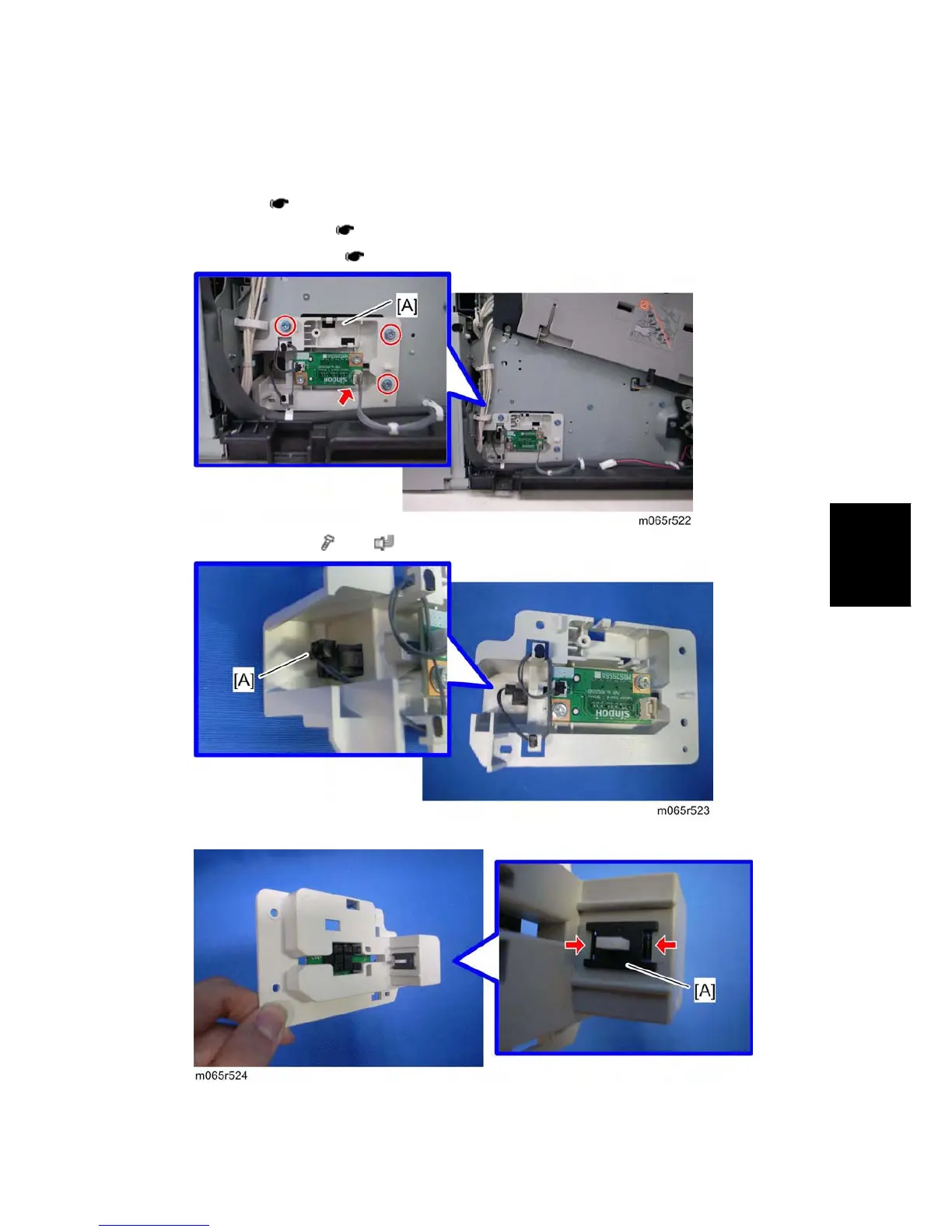

4.10.12 TRAY 1 SET SENSOR
1. Pull out the paper feed tray.
2. Left cover (
p.4-3)
3. Inner left rear cover (
p.4-11)
4. Inner left lower cover (
p.4-11)
5. Sensor holder [A] (
x 3, x 1)
6. Disconnect the connector [A].
7. Tray 1 set sensor [A] (hooks)
