Electrical Components
SM 4-145 M065/M066
Replacement
and
Adjustment

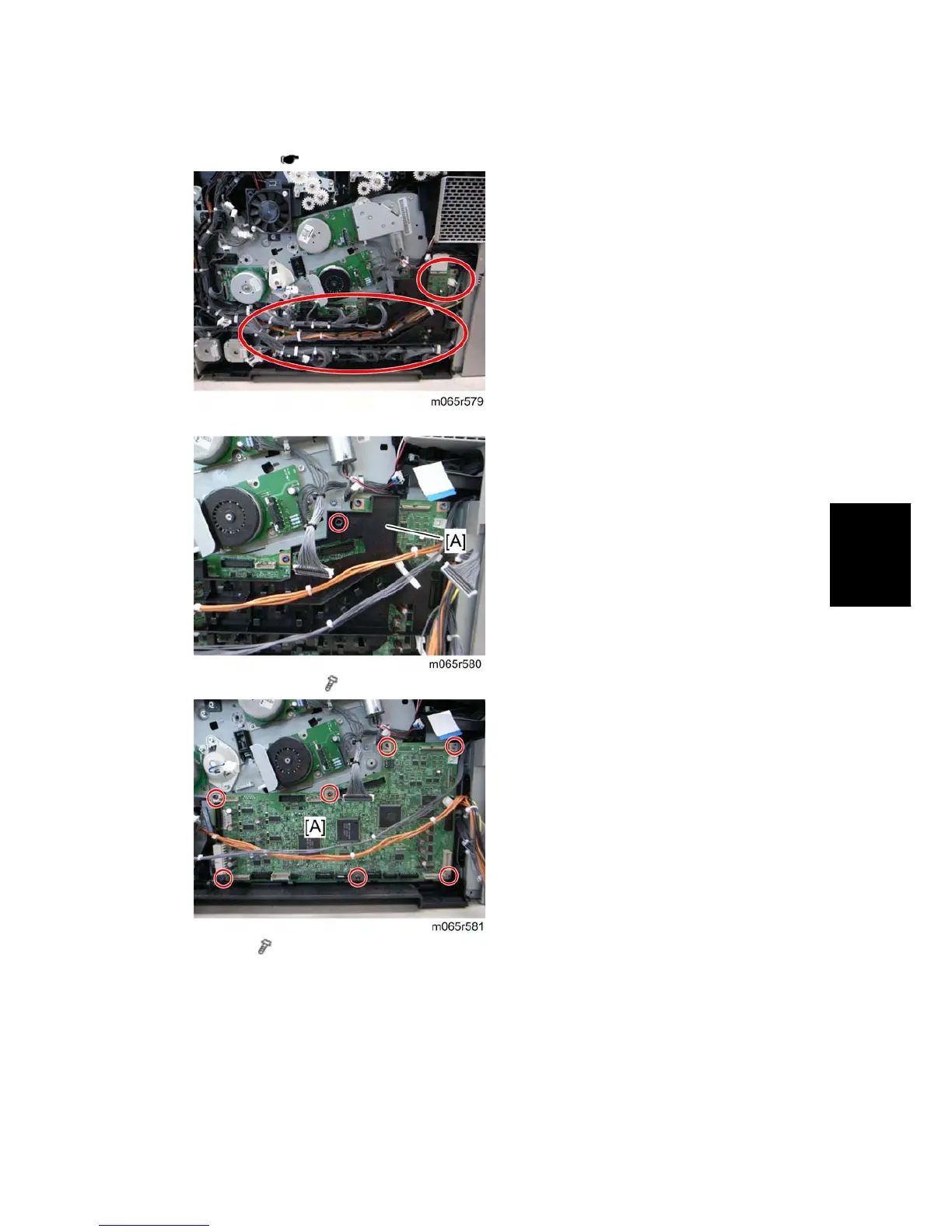

4.13.8 BCU
1. Right cover ( p.4-4)
2. Disconnect all the harnesses and the clamps.
3. Harness guide [A] ( x 1)
4. BCU [A] (
x 7)
