Electrical Components
M384 14 SM

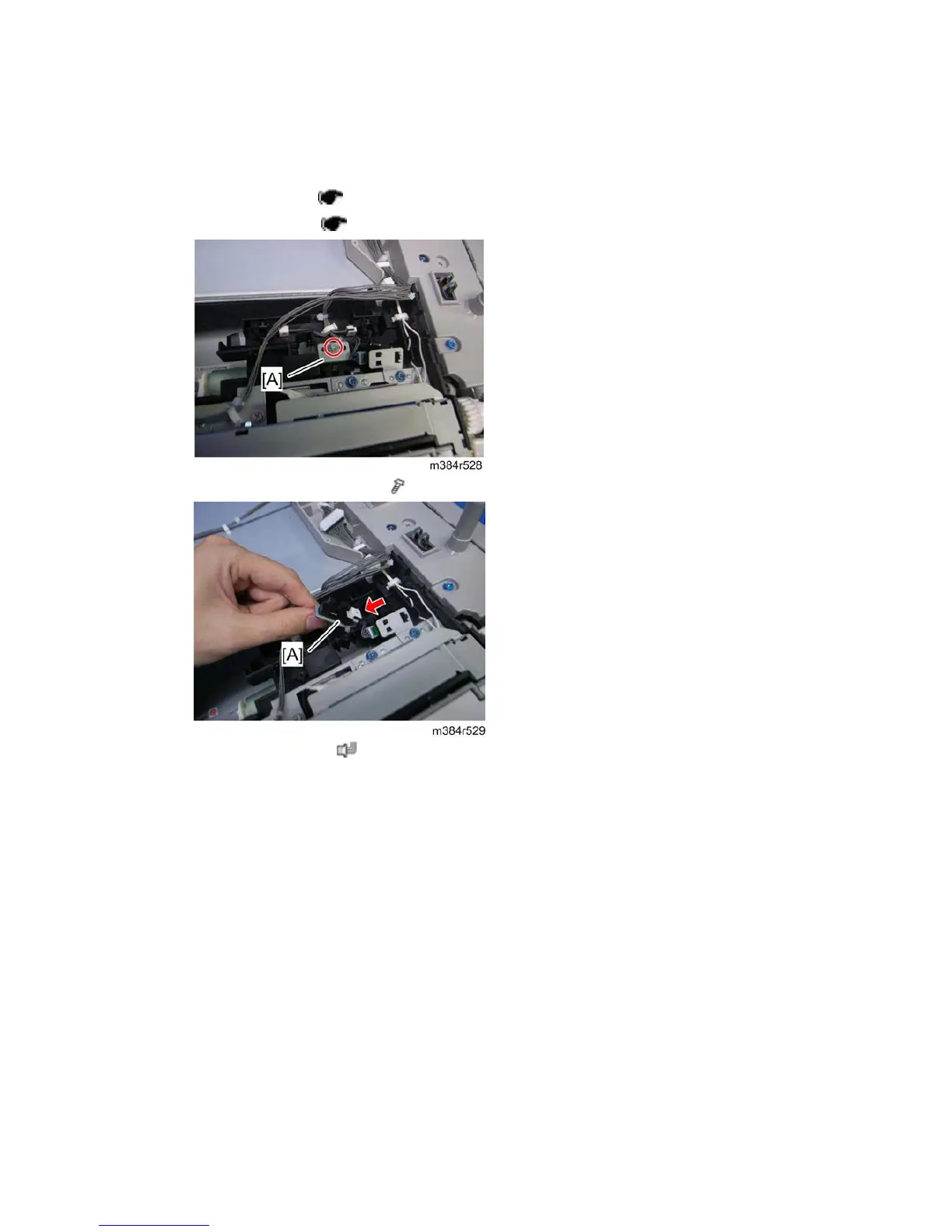

1.3.12 PAPER LIFT SENSOR
1. Upper rear cover ( p.12 "Paper End Sensor")
2. Upper front cover (
p.12 "Paper End Sensor")
3. Paper lift sensor bracket [A] (
x1)
4. Paper lift sensor [A] ( x1, hooks)
