Drive Unit
M065/M066 4-70 SM
4.8.11 PAPER FEED MOTOR
1. Right cover ( p.4-4)
2. Top cover (
p.4-6)
3. Inner right front cover (
p.4-12)
4. Motors with bracket (
p.4-68)

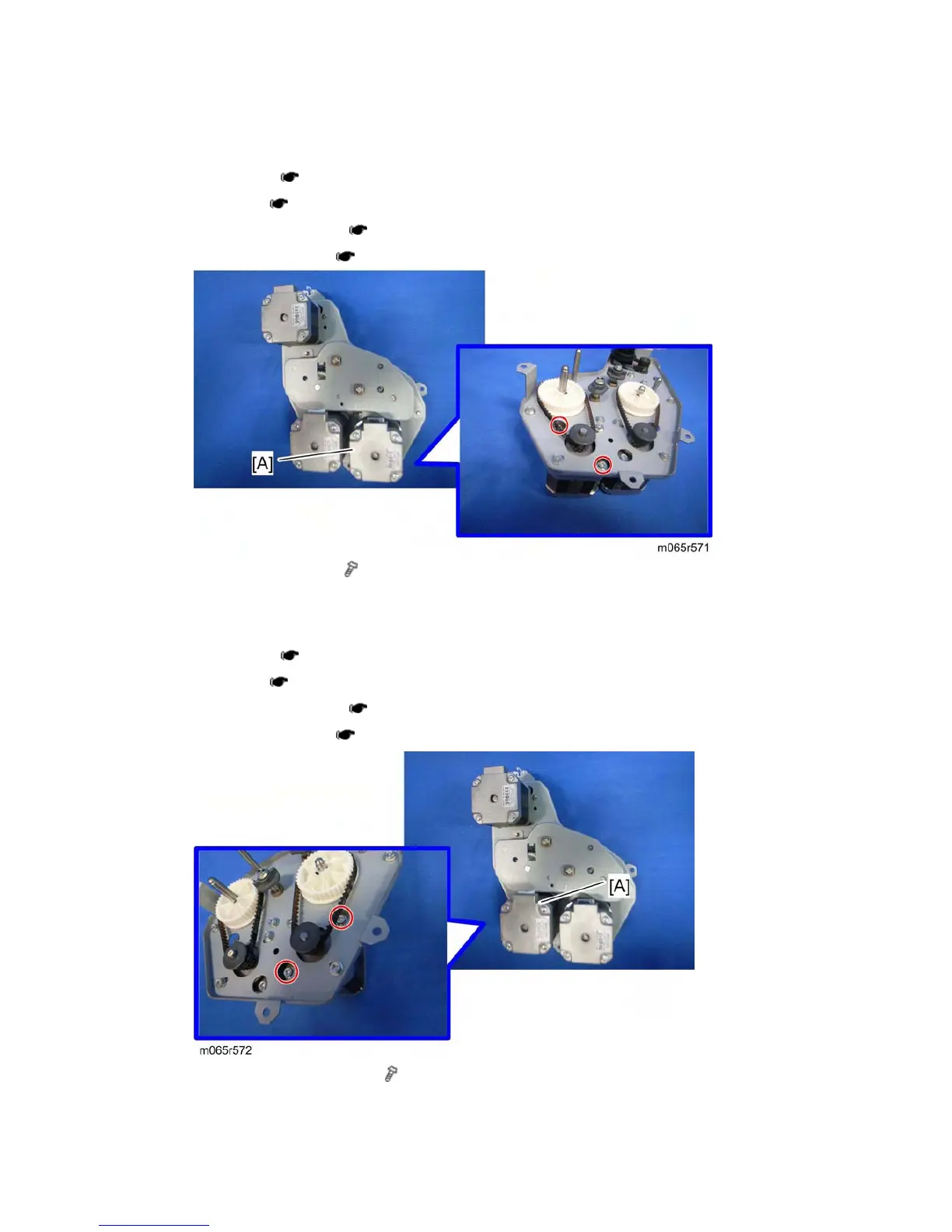

5. Paper feed motor [A] (
x 2, timing belt x 1)
4.8.12 VERTICAL TRANSPORT MOTOR
1. Right cover ( p.4-4)
2. Top cover (
p.4-6)
3. Inner right front cover (
p.4-12)
4. Motors with bracket (
p.4-68)
5. Vertical transport motor [A] (
x 2, timing belt x 1)
