Image Transfer

M065/M066 4-38 SM

4.6 IMAGE TRANSFER

4.6.1 ITB (IMAGE TRANSFER BELT) UNIT

1. Open the left cover.

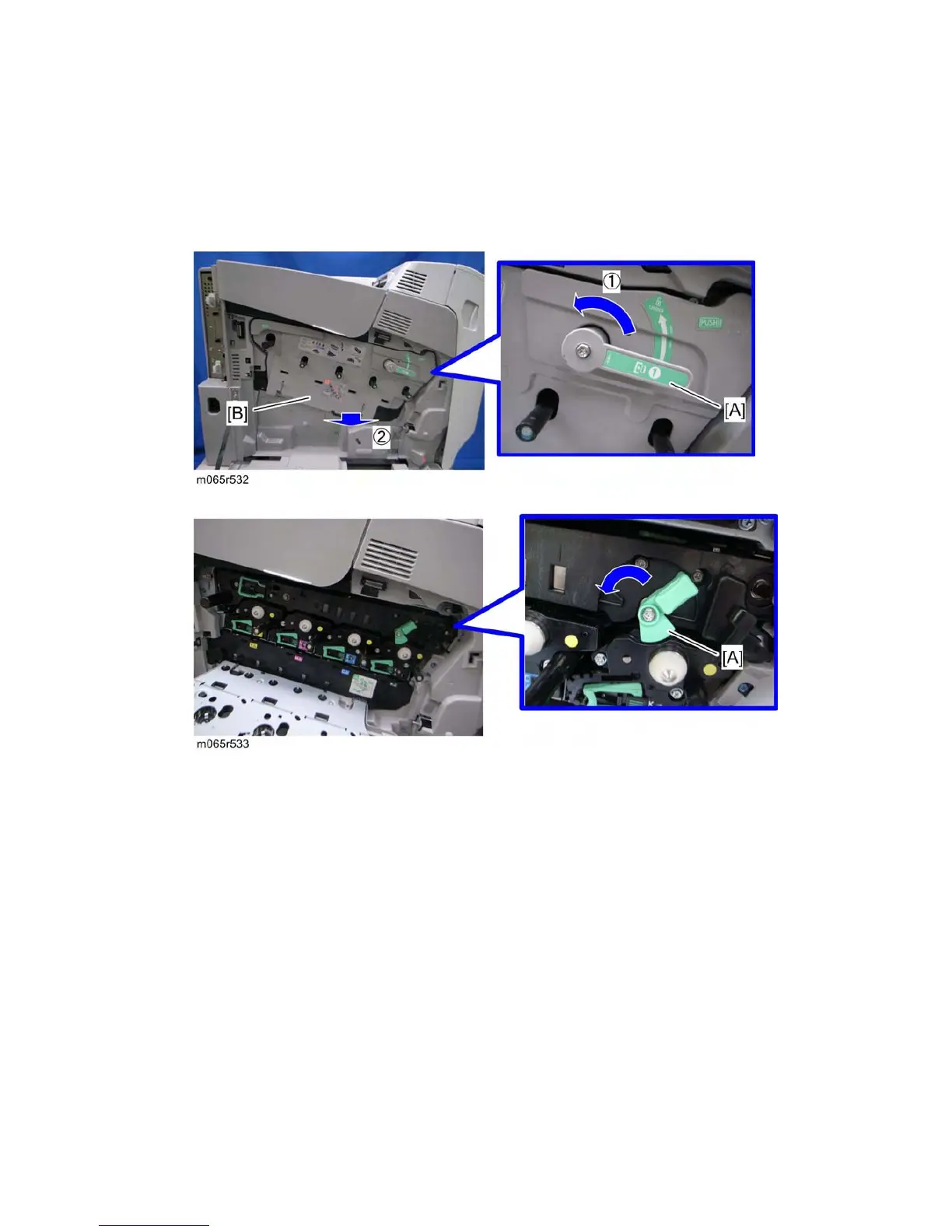

2. Turn the lock lever [A] counterclockwise, and then open the drum securing plate [B].

3. Turn the ITB lock lever [A] counterclockwise.
