Electrical Components
SM 4-147 M065/M066
Replacement
and
Adjustment

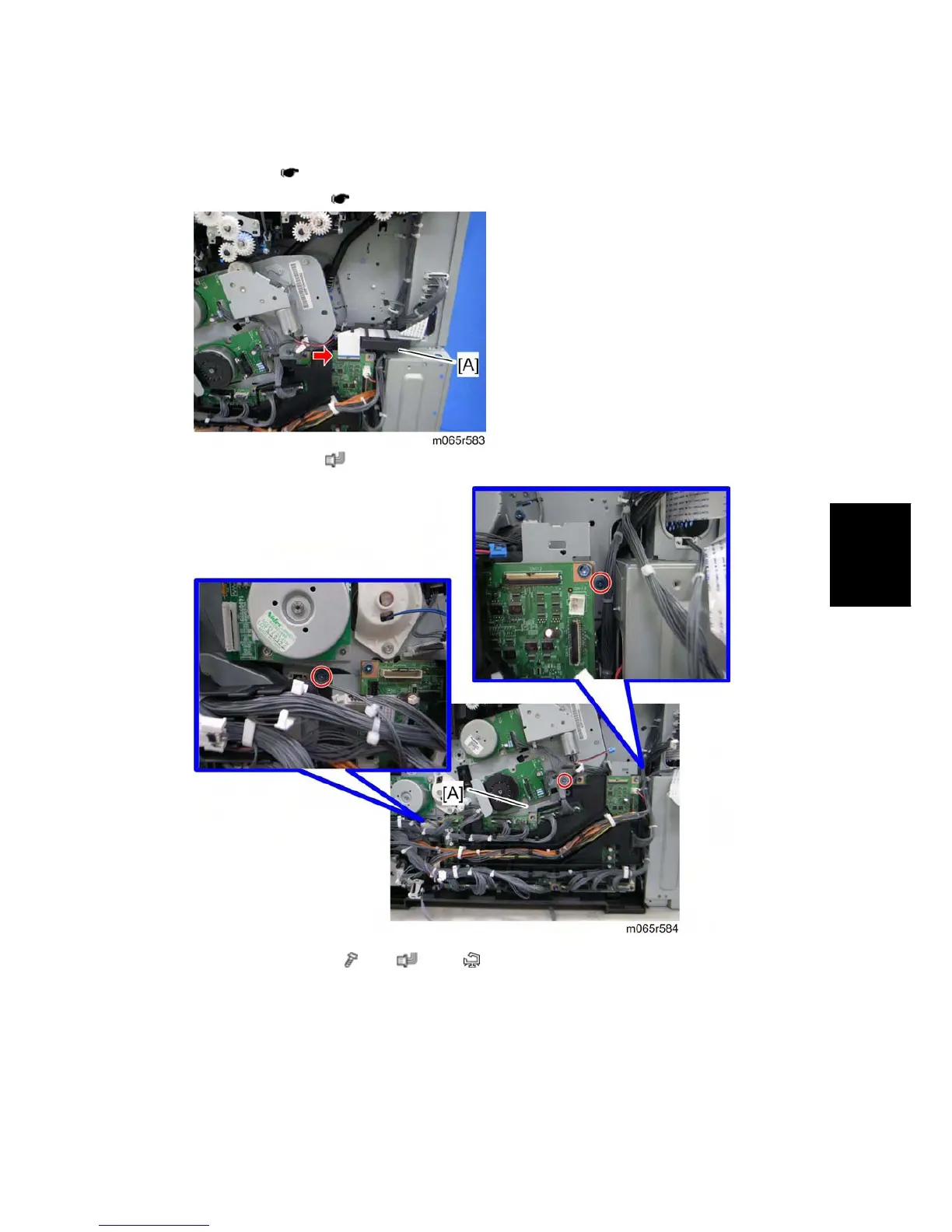

Removing the BCU with bracket
1. Right cover ( p.4-4)
2. Drive unit fan base (
p.4-73 "Drive Unit Fan")
3. Harness cover [A] (
x 1, hooks)
4. BCU with bracket [A] (
x 3, x all, x all)
