Image Creation
M065/M066 4-22 SM
When installing a new PCDU

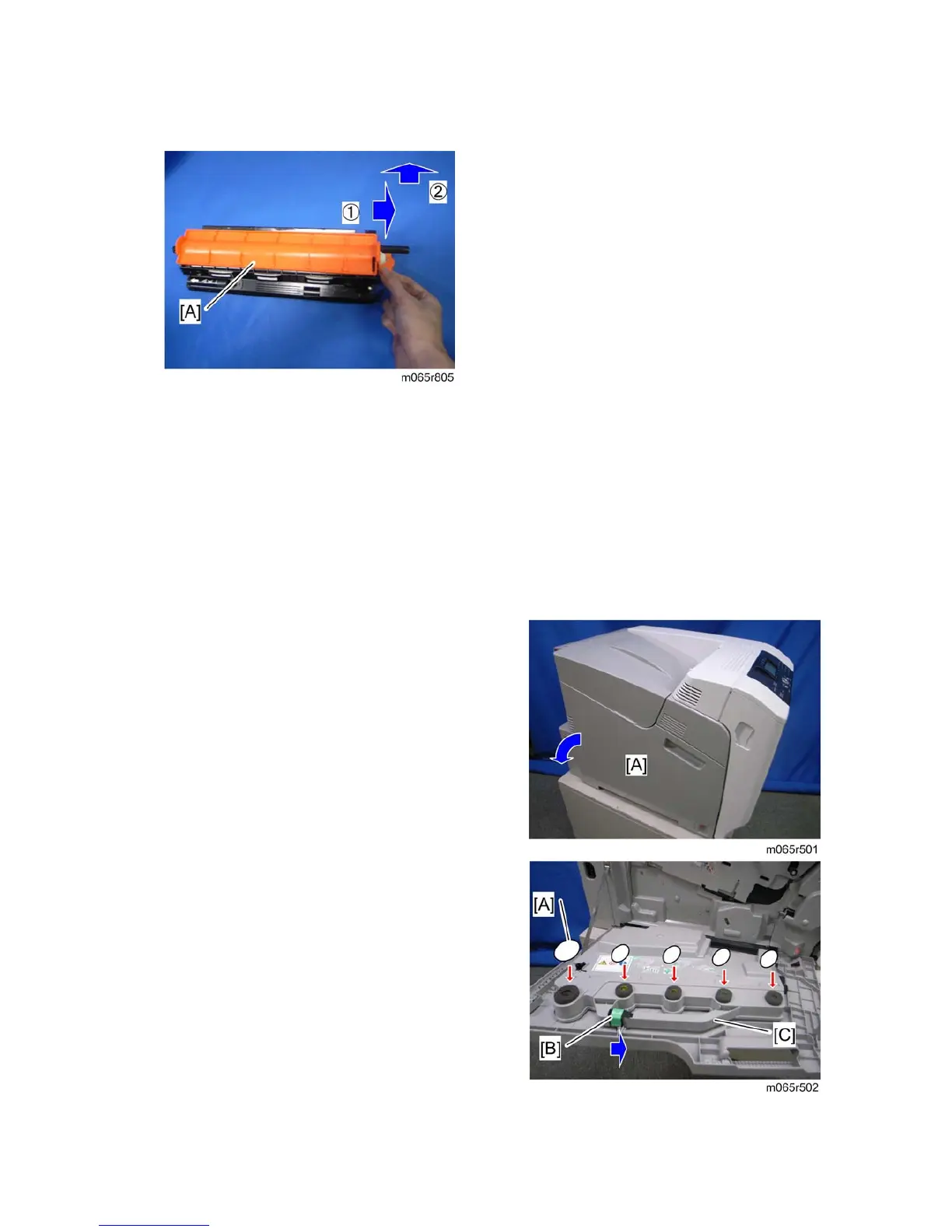

1. Remove the cover [A] and pull out the tape from the new development unit before
installing a new PCDU in the machine.
4.5.2 WASTE TONER BOTTLE
If you replace the waste toner bottle after the machine detects that it is full or near-full, the
machine automatically resets the PM counter for the waste toner bottle after replacement.
But, if you replace a bottle that is not full or near-full, then you must reset the PM counter
for this unit. To do this, set SP 3902 020 to 1 before you start to work on the machine.
1. Open the left cover [A].
2. Attach the seals (provided with the new waste
toner bottle) [A] to the five sponge pads. This
closes the waste toner bottle.
3. Release the lock [B].
4. Remove the waste toner bottle [C].
5. Put the waste toner bottle [C] into the supplied
plastic bag to prevent toner from leaking out of
the bottle, and then seal the bag.
