Ricoh M065 User Manual

Paper Exit
SM 4-109 M065/M066
Replacement
and
Adjustment

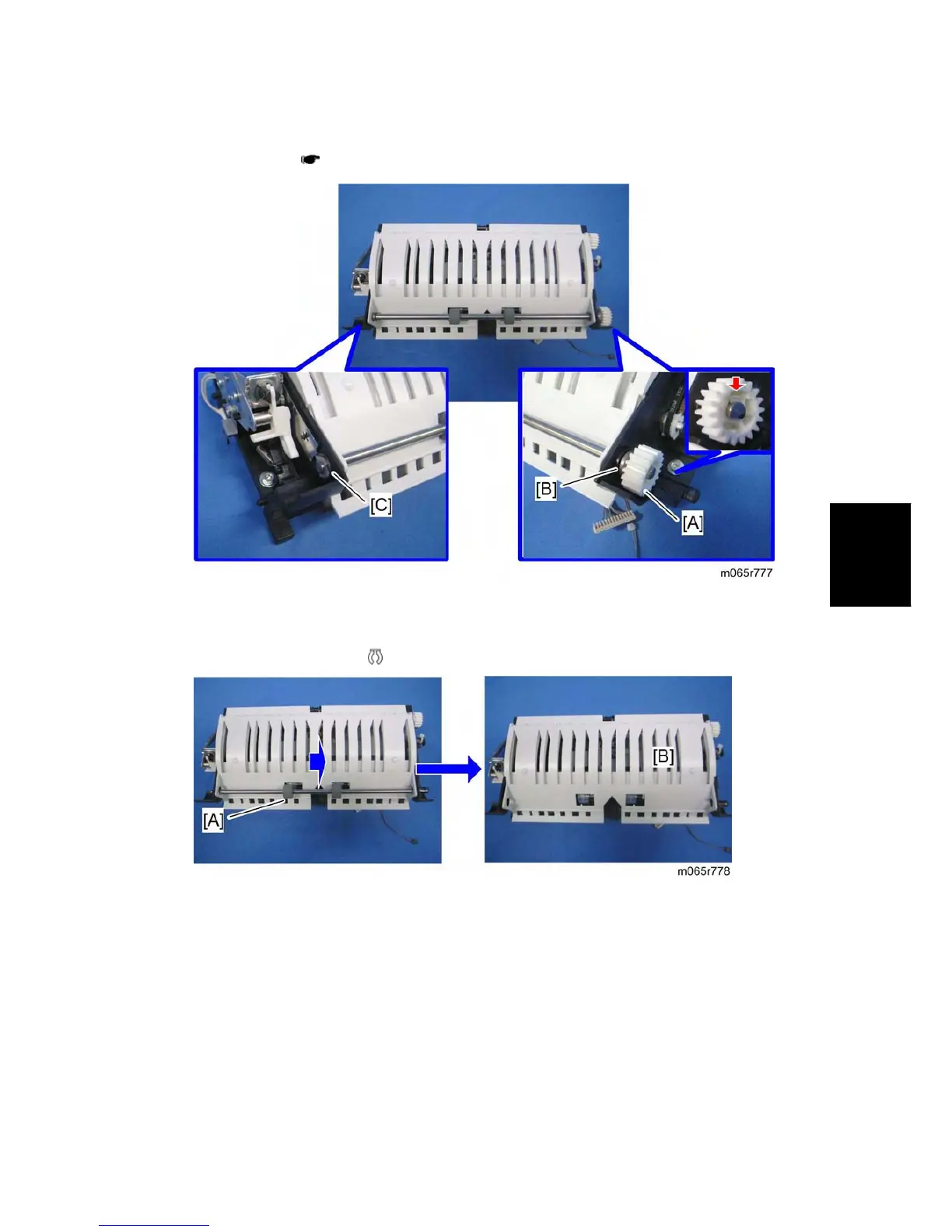

4.11.2 PAPER EXIT SENSOR
1. Paper exit unit ( p.4-107)
2. Remove the gear [A] (release the hook shown by the red arrow), and then remove the
bushing [B].
3. Remove the bushing [C] (
x 1).
4. Remove the shaft [A], and then remove the paper exit upper guide [B].
