Electrical Components
SM 11 M384
Paper Feed
Unit PB1020
(M384)

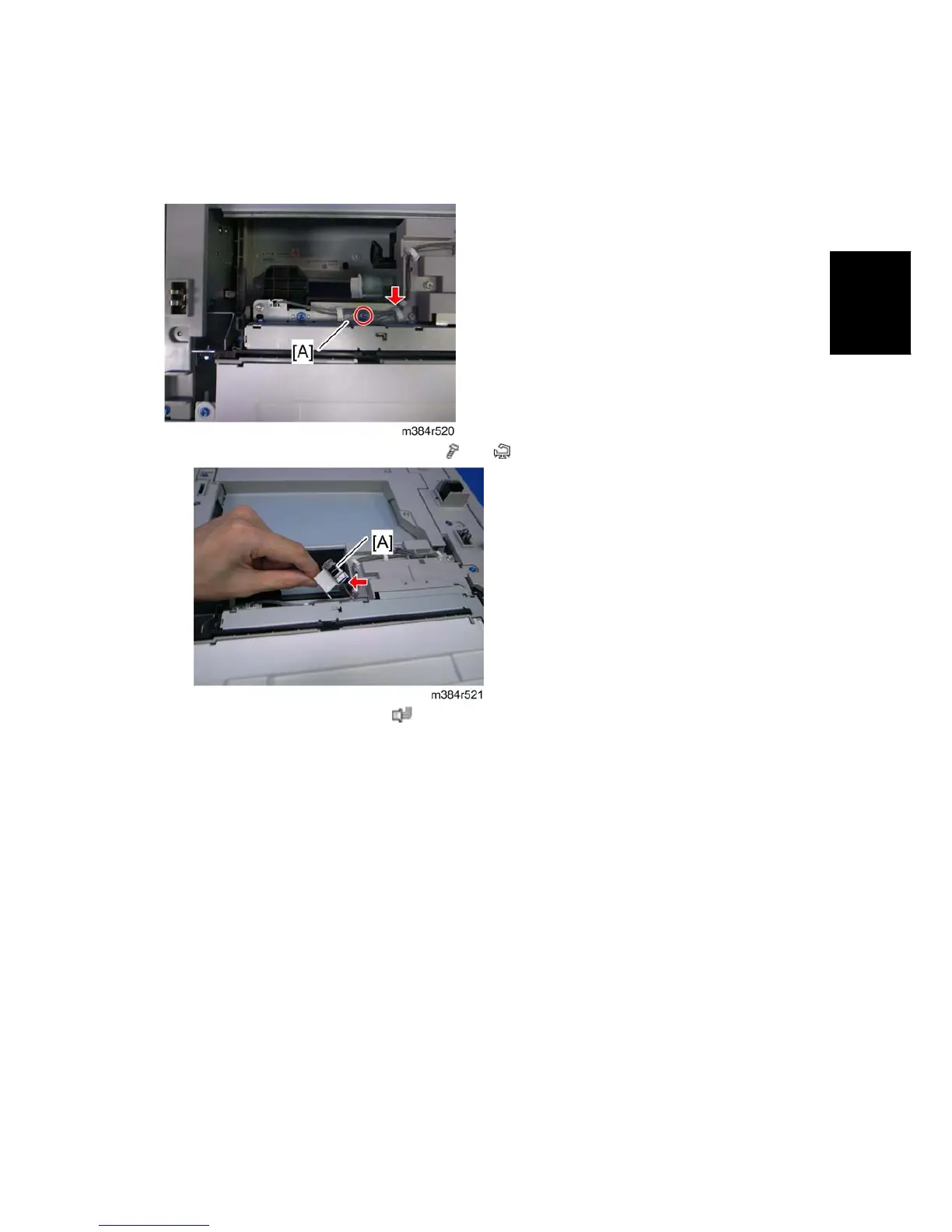

1.3.9 VERTICAL TRANSPORT SENSOR
1. Vertical transport sensor bracket [A] ( x1, x1)
2. Vertical transport sensor [A] (
x1, hooks)
