Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
13
2.2
Machine Control Panels (MCPs)
2.2.1

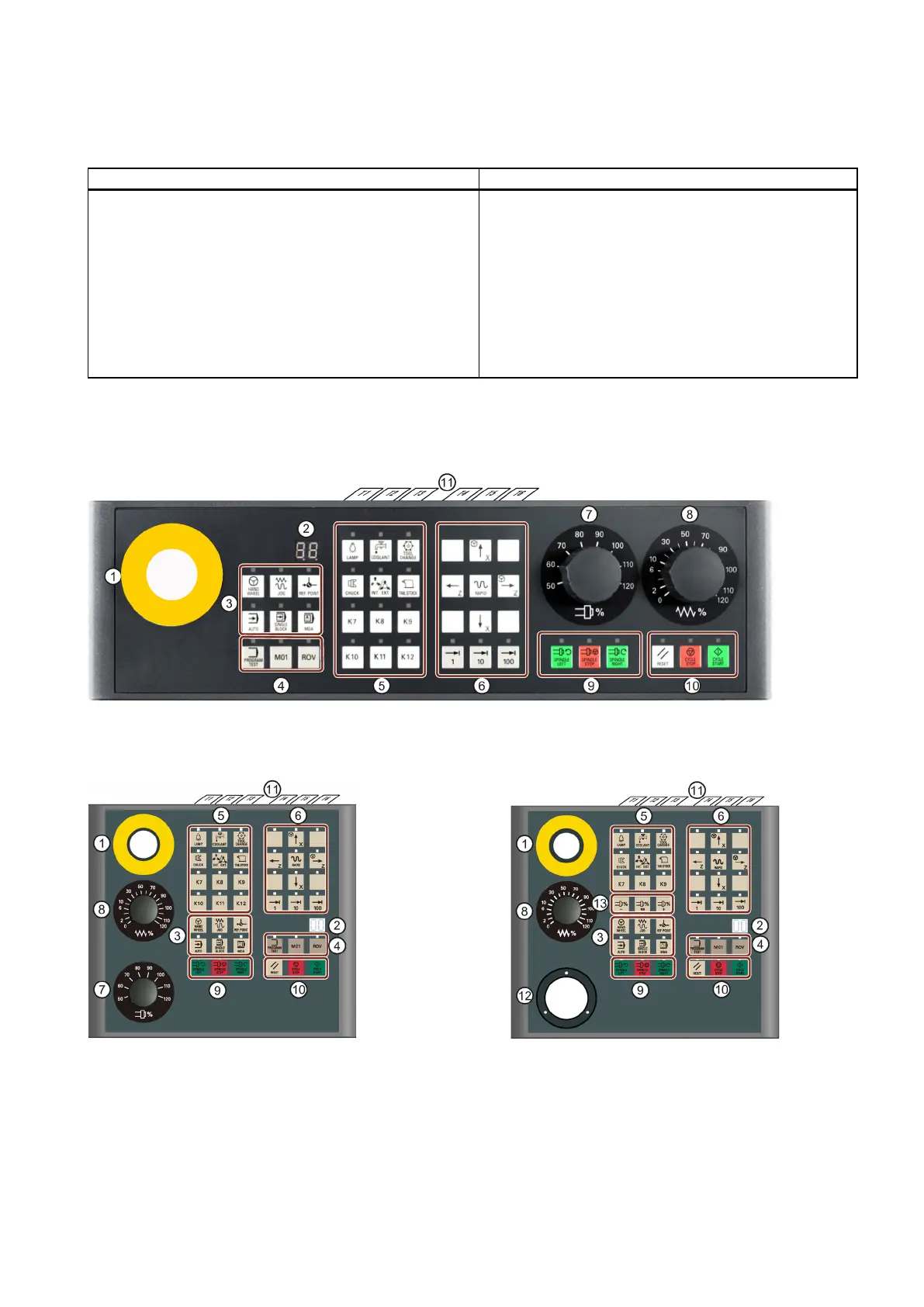

MCP versions
MCP version
Applicable control system
• Horizontal MCP, with English keys and override switches
•
Horizontal MCP, with Chinese keys and override switches
• Vertical MCP, with English keys and a reserved slot for
the handwheel
• Vertical MCP, with Chinese keys and a reserved slot for
the handwheel
• Vertical MCP, with English keys and an override switch
for the spindle
• Vertical MCP, with Chinese keys and an override switch
for the spindle
All MCP variants are applicable to any of the following
control systems:
• SINUMERIK 808D ADVANCED T (Turning)
• SINUMERIK 808D ADVANCED M (Milling)
• SINUMERIK 808D (Turning)
• SINUMERIK 808D (Milling)
2.2.2
MCP control elements
Horizontal MCP
Vertical MCP
•
Variant with an override switch for the spindle
•
Variant with a reserved slot for the handwheel
①
Reserved hole for emergency stop button
⑧
Feedrate override switch
②
Tool number display
Displays the number of the currently active tool
⑨
Spindle control keys
