A.2
Operating mode overview
A.2.1

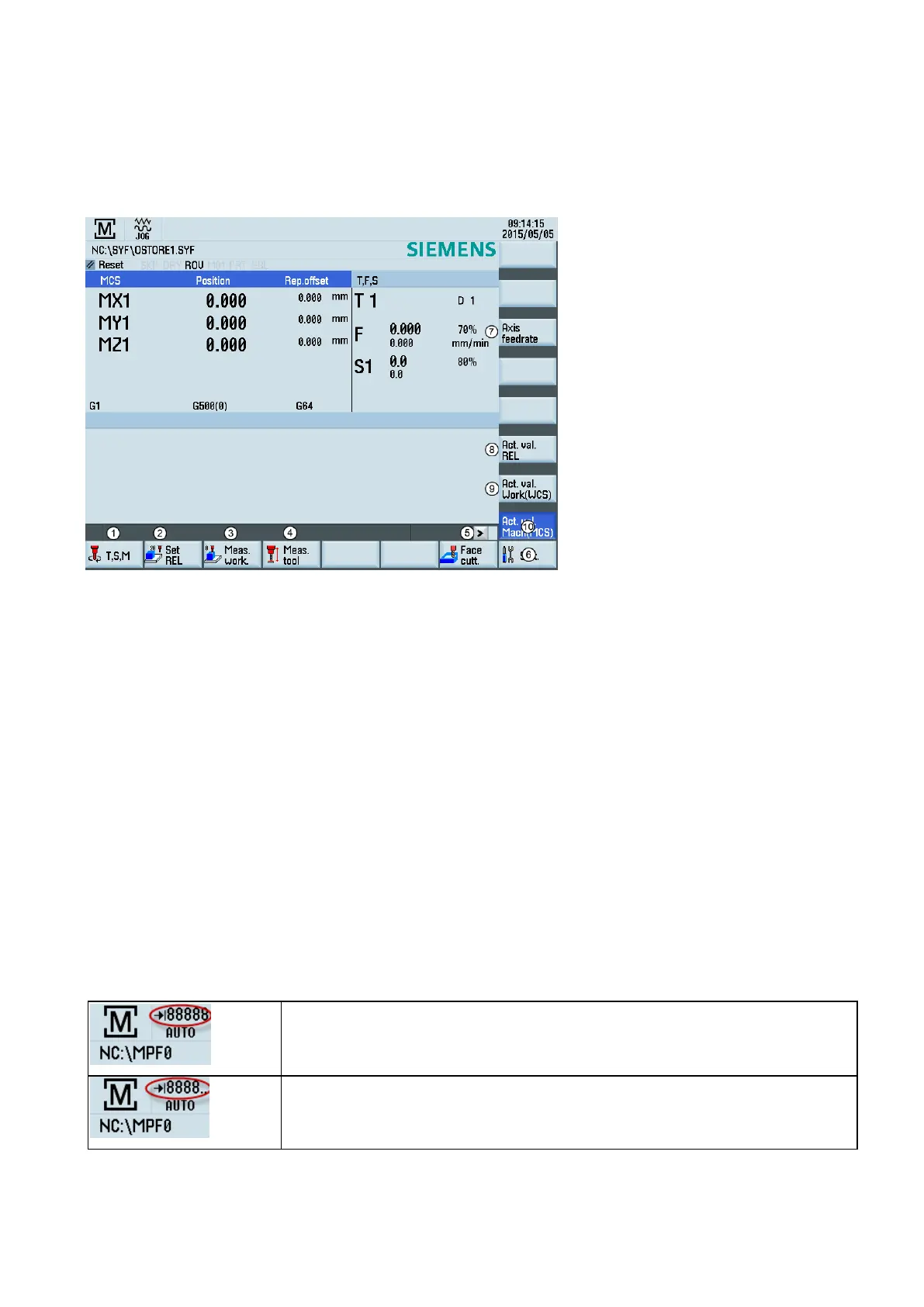

"JOG" mode
①
Opens the "T, S, M" window where you can acti
vate tools, set spindle speed and direction (see Section "
Activating the
tool and the spindle
(Page 23)"), and select a G code or other M functions for activating the settable work offset.
②
Switches the display to the relative coordinate system. You can set the reference point in this coordinate system. For
more information, see Section "
Setting the relative coordinate system (REL) (Page 290)".
③
Opens the workpiece measurement window where you determine the work offset data. For more information about
this window, see Section "Measuring the workpiece (Page 57)".
④
Opens the tool measurement window where you determine the tool offset data. For more information about this wi
n-
dow, see Sections "
Measuring the tool manually (Page 27)", "Measuring the tool with a probe (auto) (Page 56)" and
"Calibrating the tool probe (Page 54)".
⑤
Opens the face cutting window where you specify parameters for machining the end face or peripheral surface of a
blank without creating a special part program. For more information about this window, see Section "
Face milling
(Page
291)".
⑥
Opens the settings window where you can set JOG feedrate and variable increment values.
⑦
Displays the axis feedrate in the selected coordinate system.
⑧
Di
splays the axis position data in the relative coordinate system.
⑨
Displays the axis position data in the workpiece coordinate system.
⑩
Displays the axis position data in the machine coordinate system.
Display of variable increments
The HMI displays the variable increment if it is defined in the standard subroutine program:
Value ≤ five digits: displays the complete value
Value > five digits: displays the first four digits plus ".."
