Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
307

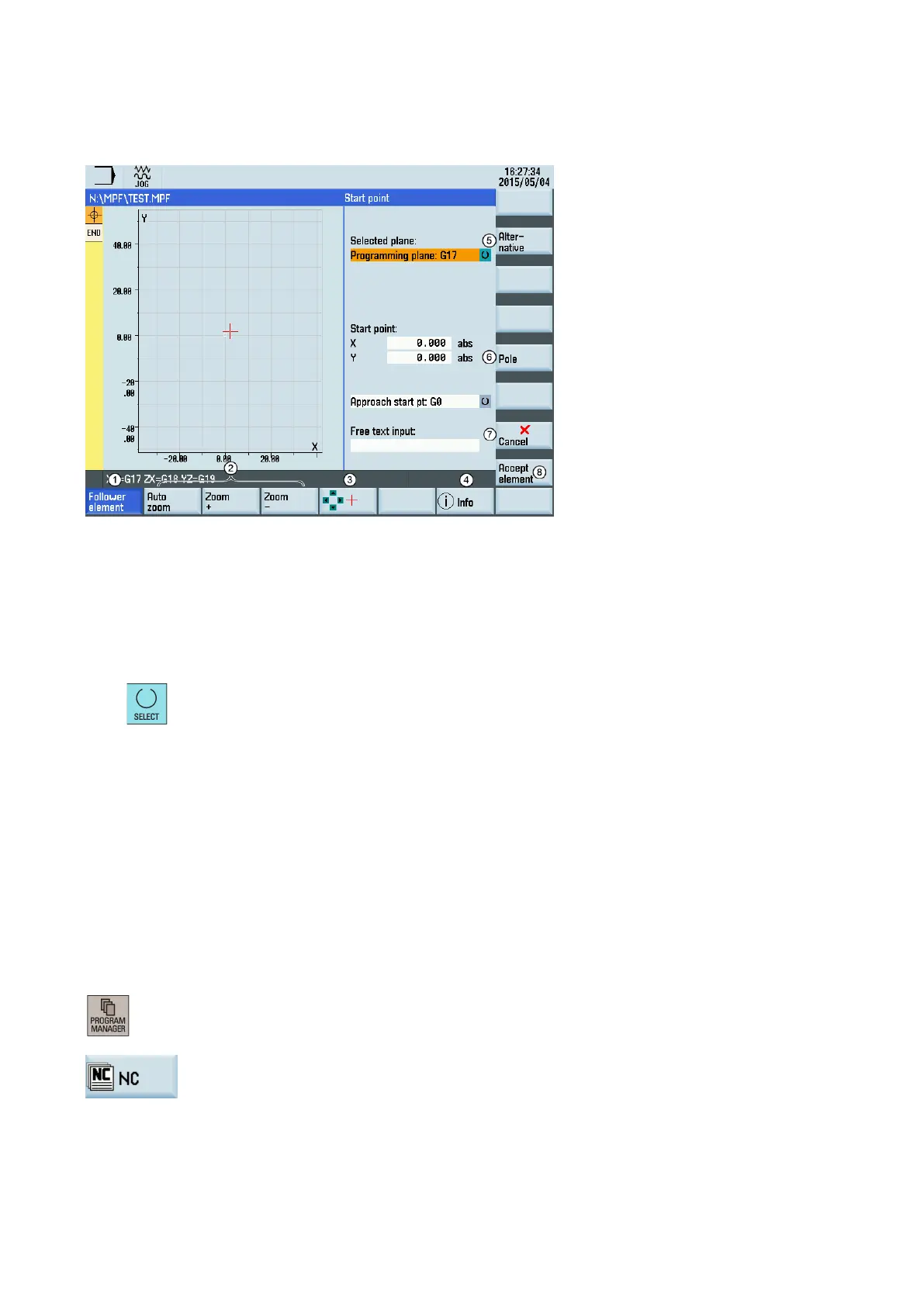

An element was selected using the c
ursor keys. This softkey enlarges the image section of the selected element.
Zooms the graphic in/out/automatically
â‘¢
When you select this softkey, you can move the red cross
-hair with the cursor keys and choose a picture detail to
activate this softkey, the input focus is positioned in the contour chain again.
â‘£
If you press this softkey, help graphics are displayed in addition to the relevant parameter. Pressing the softkey again
exits the help mode.
Press this softkey to toggl
e between the selections. This softkey functions the same as pressing the following key:
â‘¥
Defines a pole for contour programming in polar coordinates. The pole can only be entered in absolute Cartesian
coordinates.
⑦
Exits the contour editor and returns to the program editor window, without transferring the last edited values to the
main program
Saves the settings for the start point
When entering a contour, begin at a position which you already know and enter it as the starting point.
1. Select the program management operating area.
2. Enter the system program directory.
