Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
185
5.

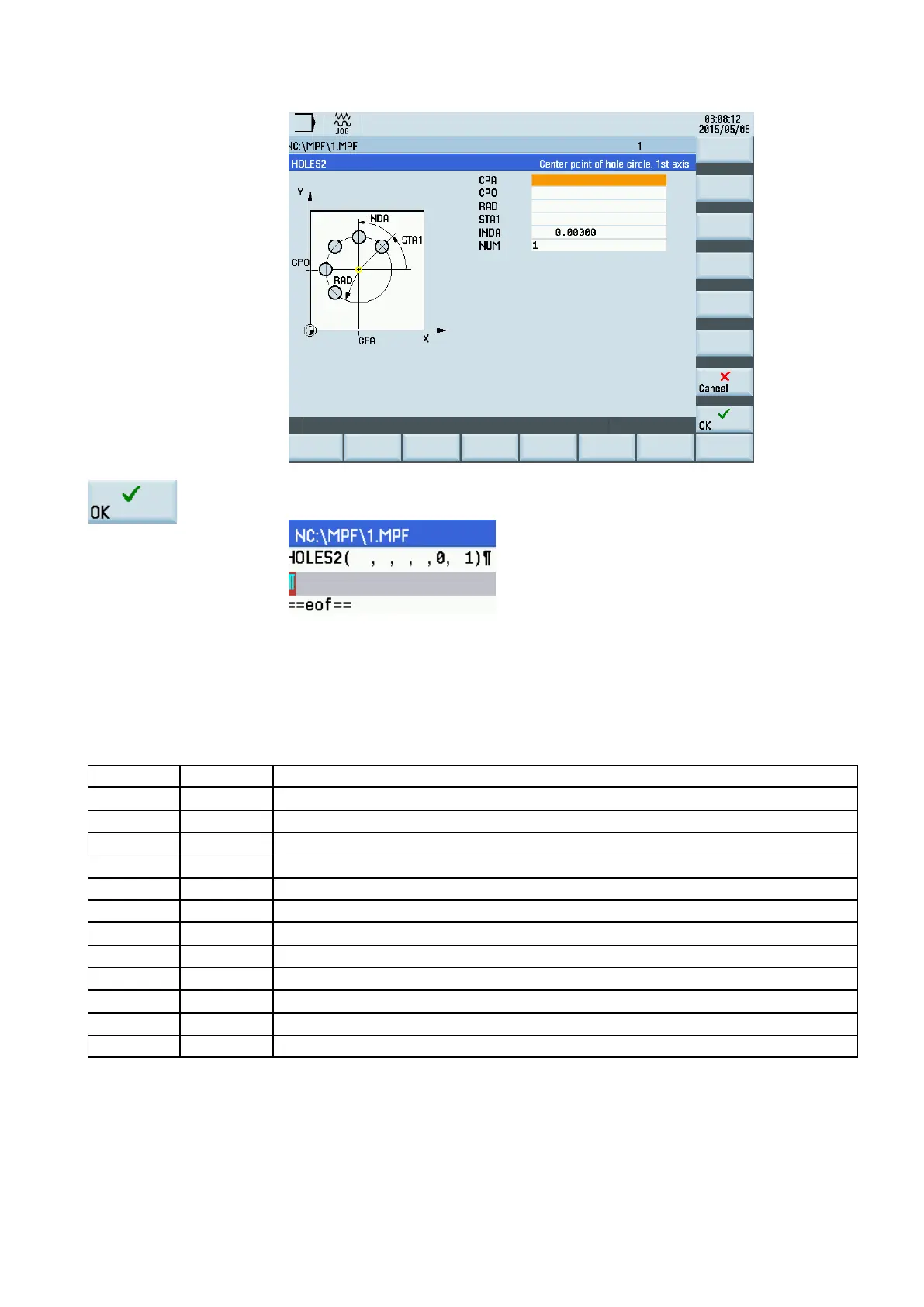

Confirm your settings with this softkey. The cycle is then automatically transferred to the
program editor as a separate block.
Arbitrary positions - CYCLE802
Programming
CYCLE802 (111111111, 111111111, X0, Y0, X1, Y1, X2, Y2, X3, Y3, X4, Y4)
PSYS INT Internal parameter, only the default value 111111111 is possible
Internal parameter, only the default value 111111111 is possible
X0 REAL First position in the X axis
First position in the Y axis
X1 REAL Second position in the X axis
Second position in the Y axis
X2 REAL Third position in the X axis
Y2 REAL Third position in the Y axis
Fourth position in the X axis
Y3 REAL Fourth position in the Y axis
X4 REAL Fifth position in the X axis
Fifth position in the Y axis
This cycle allows you to freely program positions, i.e., rectangular or polar. Individual positions are approached in the order
in which you program them.
