Drilling, counterboring - CYCLE82
Programming
CYCLE82 (RTP, RFP, SDIS, DP, DPR, DTB)
Retraction plane (absolute)
RFP REAL Reference plane (absolute)
SDIS REAL Safety clearance (enter without sign)
DP REAL Final drilling depth (absolute)
Final drilling depth relative to the reference plane (enter without sign)
DTB REAL Dwell time at final drilling depth (chip breaking)
The tool drills at the programmed spindle speed and feedrate to the entered final drilling depth. A dwell time can be allowed
to elapse when the final drilling depth has been reached.

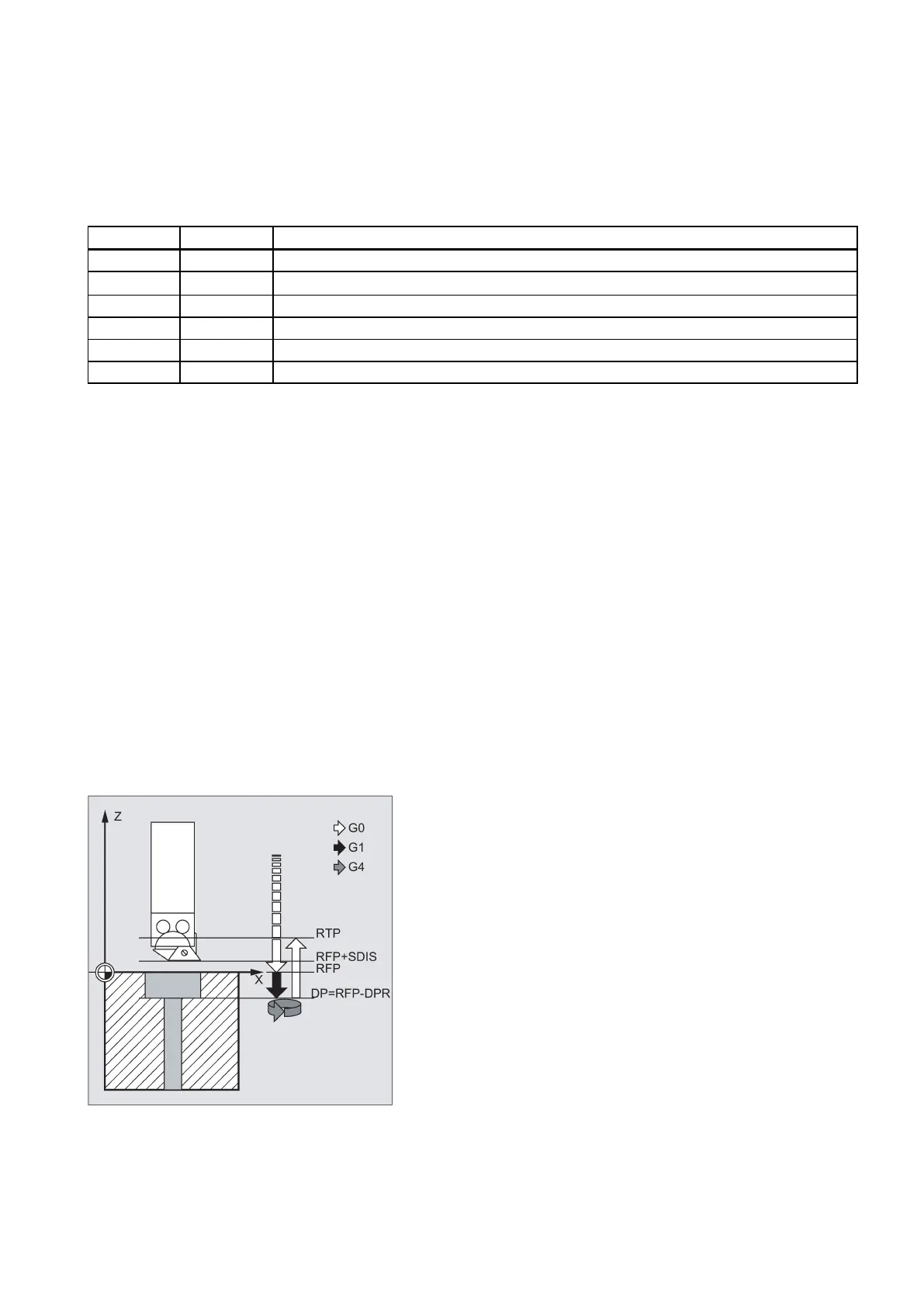

Sequence
Position reached prior to cycle start:
The drilling position is the position in the two axes of the selected plane.
The cycle creates the following sequence of motions:
● Approaching the position of safety distance relative to the reference plane with G0
● Traversing to the final drilling depth with the feedrate (G1) programmed prior to the cycle call
● Dwell time at final drilling depth
● Retraction to the retraction plane with G0
Explanation of the parameters
For more information about the parameters RTP, RFP, SDIS, DP, DPR, see Section "Drilling, centering - CYCLE81
(Page 157)".
