Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
98 6FC5398-4DP10-0BA6, 09/2017
11.4.2
Circular interpolation via intermediate point: CIP
Fu n ctionality
If you know
three contour points
of the circle, instead of center point or radius or aperture angle, then it is advantageous to
use the CIP function.
The direction of the circle results here from the position of the intermediate point (between starting and end points). The
intermediate point is written according to the following axis assignment:
I1=... for the X axis,
J1=... for the Y axis,
K1=... for the Z axis.
CIP remains active until canceled by another instruction from this G group (G0, G1, G2, ...).
Note
The configured dimensional data G90 or G91 applies to the end point and
the intermediate point.

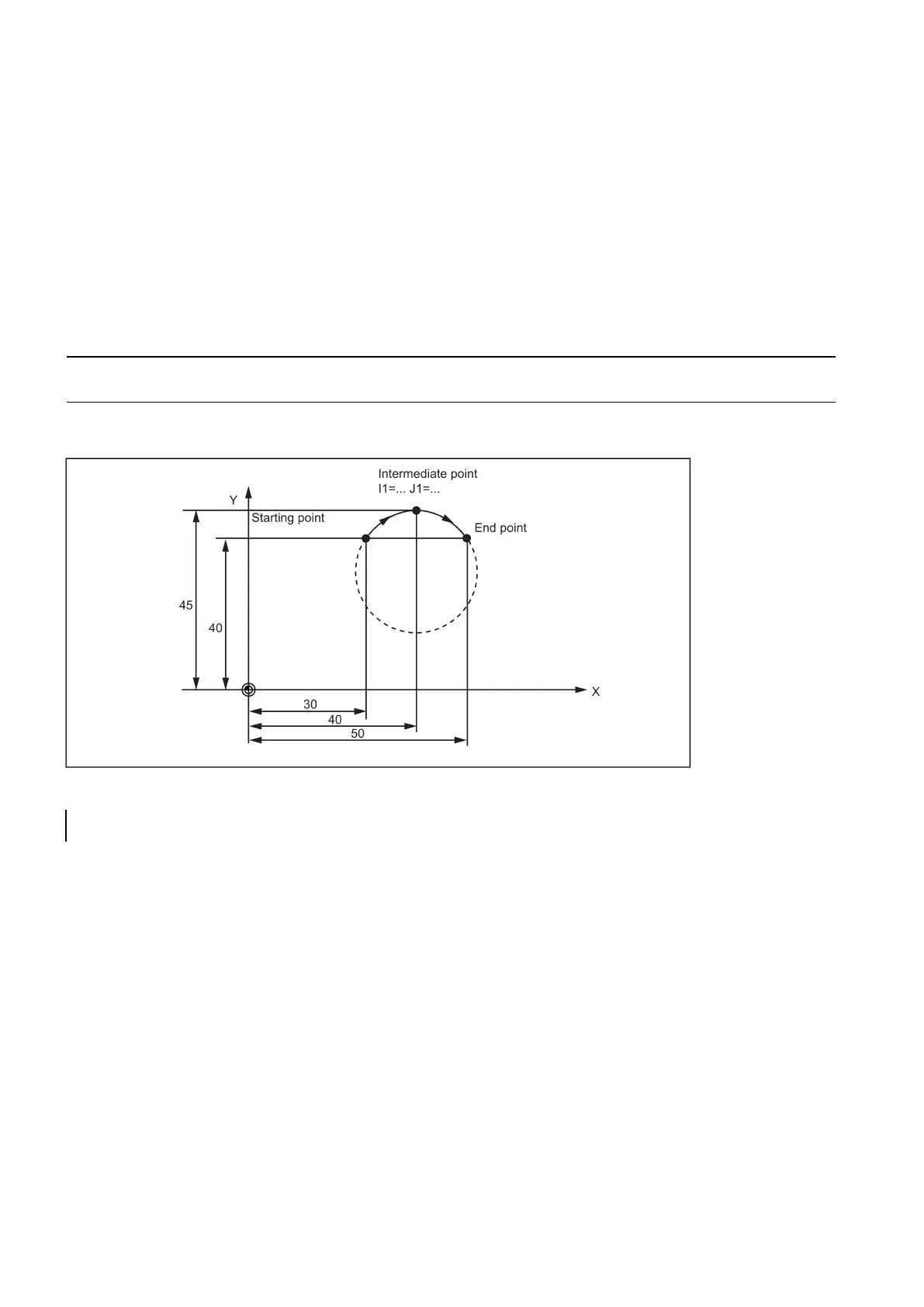

See the following illustration for circle with end point and intermediate point specification using the example of G90:
Programming example
N5 G90 X30 Y4 0
;Starting point circle for N10
N10 CIP X50 Y40 I1=40 J1=45
; End point and intermediate point
