Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
54 6FC5398-4DP10-0BA6, 09/2017
10.1.6

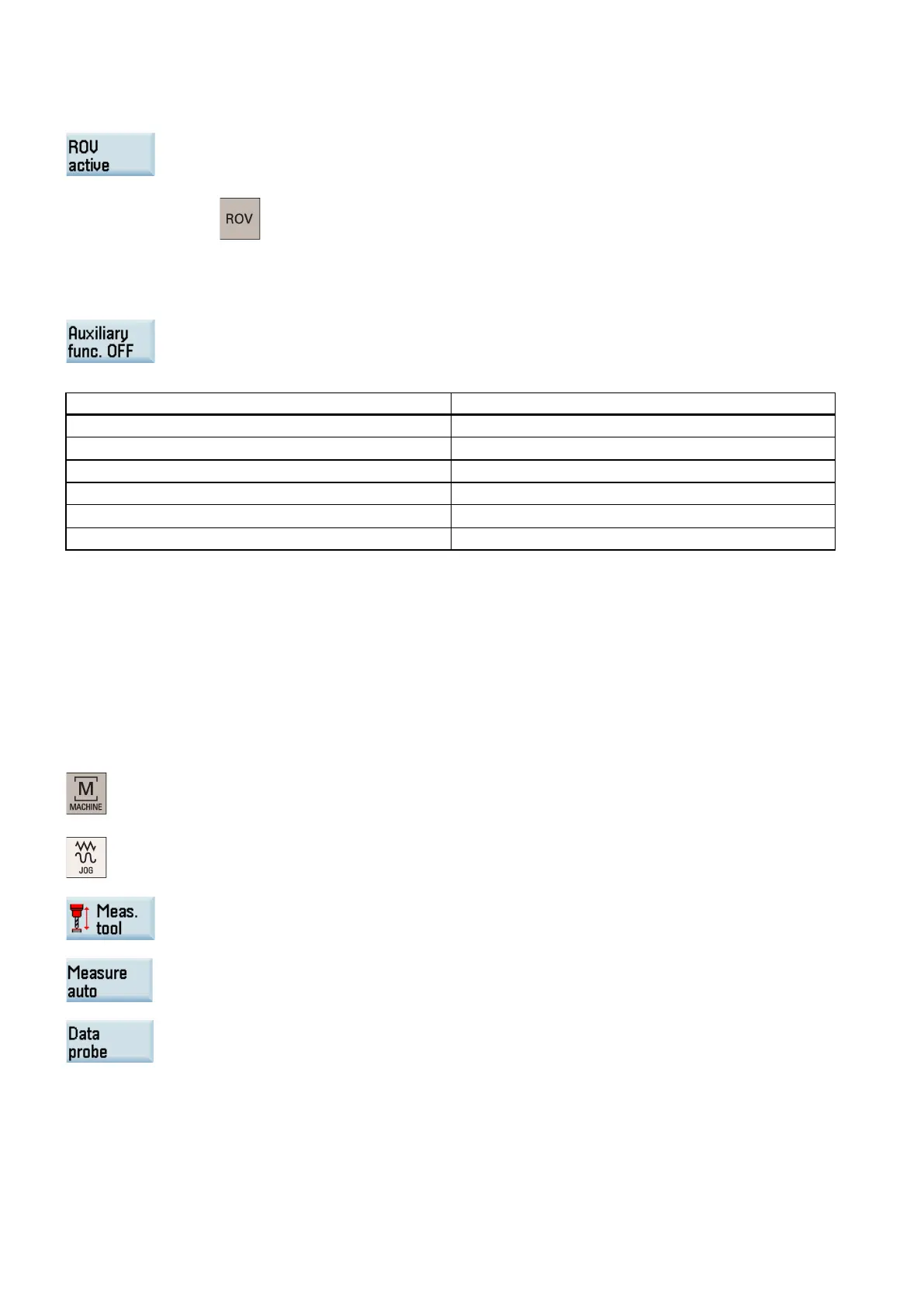

Rapid traverse override
With this softkey activated, the traversing speed of the axes in the rapid traverse mode (G00) can
be controlled via the feedrate override switch on the MCP.
This softkey functions the same as the following key on the MCP:
It is recommended that you keep this function activated for easy feedrate control during machining.
10.1.7
Auxiliary function lock
With this softkey activated, the part program is ex
ecuted with the spindle disabled and all auxiliary
functions (see below) suppressed.
Auxiliary function
Address
Tool selection T
Tool offset
D, DL
Feedrate F
Spindle speed
S
M functions M
H functions H
10.2
Calibrating the tool probe
Preconditions
● The machine manufacturer must have connected the probe to the control system. For more information, see the
SINUMERIK 808D/SINUMERIK 808D ADVANCED Function Manual.
● You must first enter the radius or diameter of the tool for probe calibration.
Operating sequences
Setting the probe data
1.
Select the machining ope
rating area.
2.
Switch to "JOG" mode.
3.
Open the lower
-level menu for tool measurement.
4.
Open the auto tool measurement window.
5.
Press this vertical softkey to open the probe data setting window, which s
hows the coordi-
nates of the probe. Enter the values in the input fields as required (see table below for the
parameter descriptions). See the machine coordinate system for all position values.
