● Counterclockwise → results in traversing in a direction opposite to the programmed direction
Here, the axes can only traverse to the appropriate block start. Pulses are not collected if the handwheel continues to
rotate.
Note
When the axes move against the programmed direction, the program reaches the beginning of each block and no further
operation is available.
A.4
The help system
The control system provides comprehensive online help. Whenever necessary, you can call the help system from any
operating area.

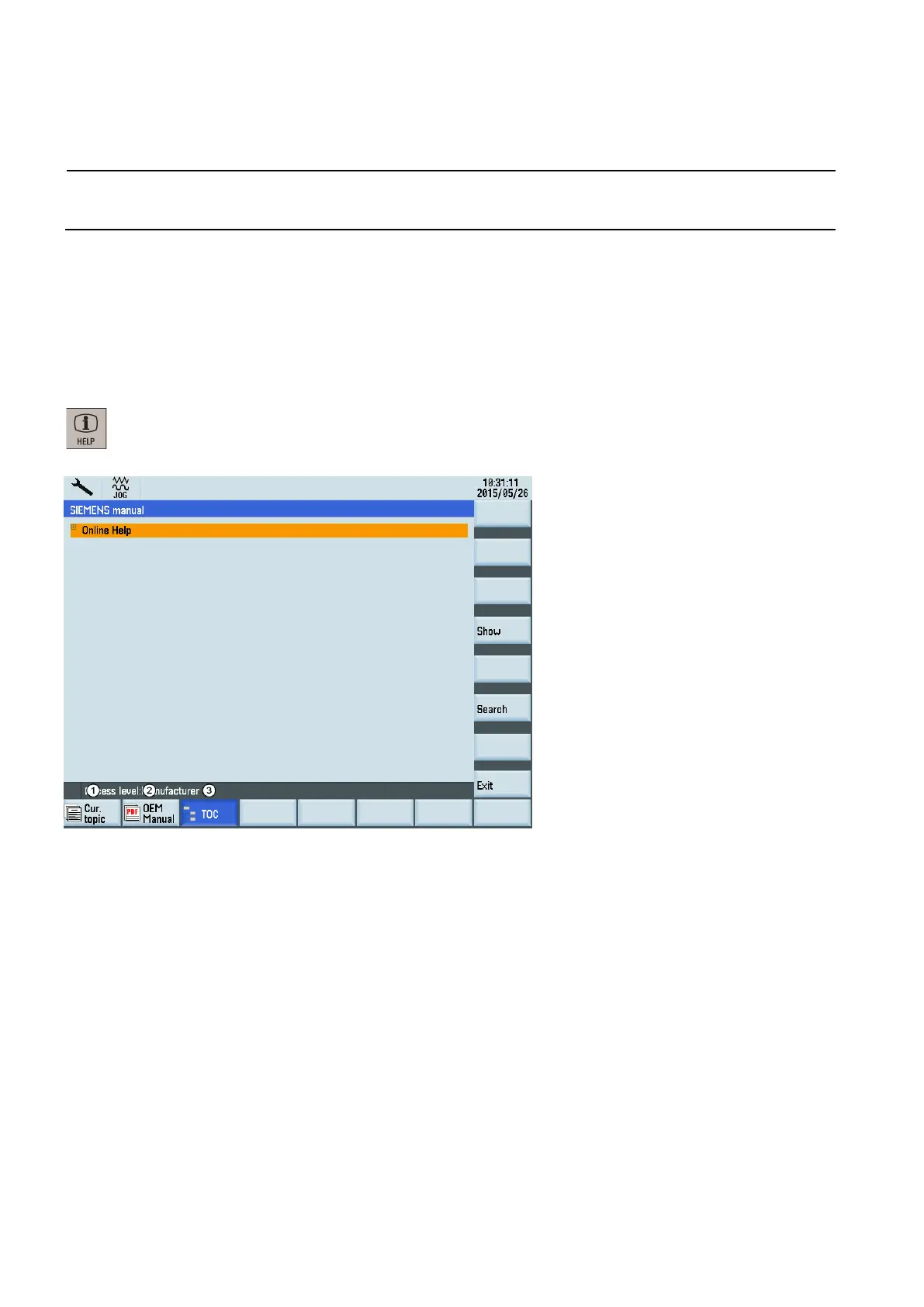

The help system
Press
this key or the key combination <ALT> + <H> to call the help system from any operating area. If a con-
text
-sensitive help exists, Window "①" opens; otherwise, Window "③" opens.
①
Calls the context
-sensitive help for the current topic:
•
Current operating window
•
NC/V70 alarms selected in the alarm specific operation area
•
Machine data or setting data selected
•
V70 data selected
②
Calls the machine manufacturer
-developed PDF manual
③
Displays all available help information:
•
Siemens help manuals
•
Machine manufacturer-developed help manuals, if any
•
All available NC/V70 alarms
•
All available V70 parameters
•
All available machine data or setting data
