Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
293

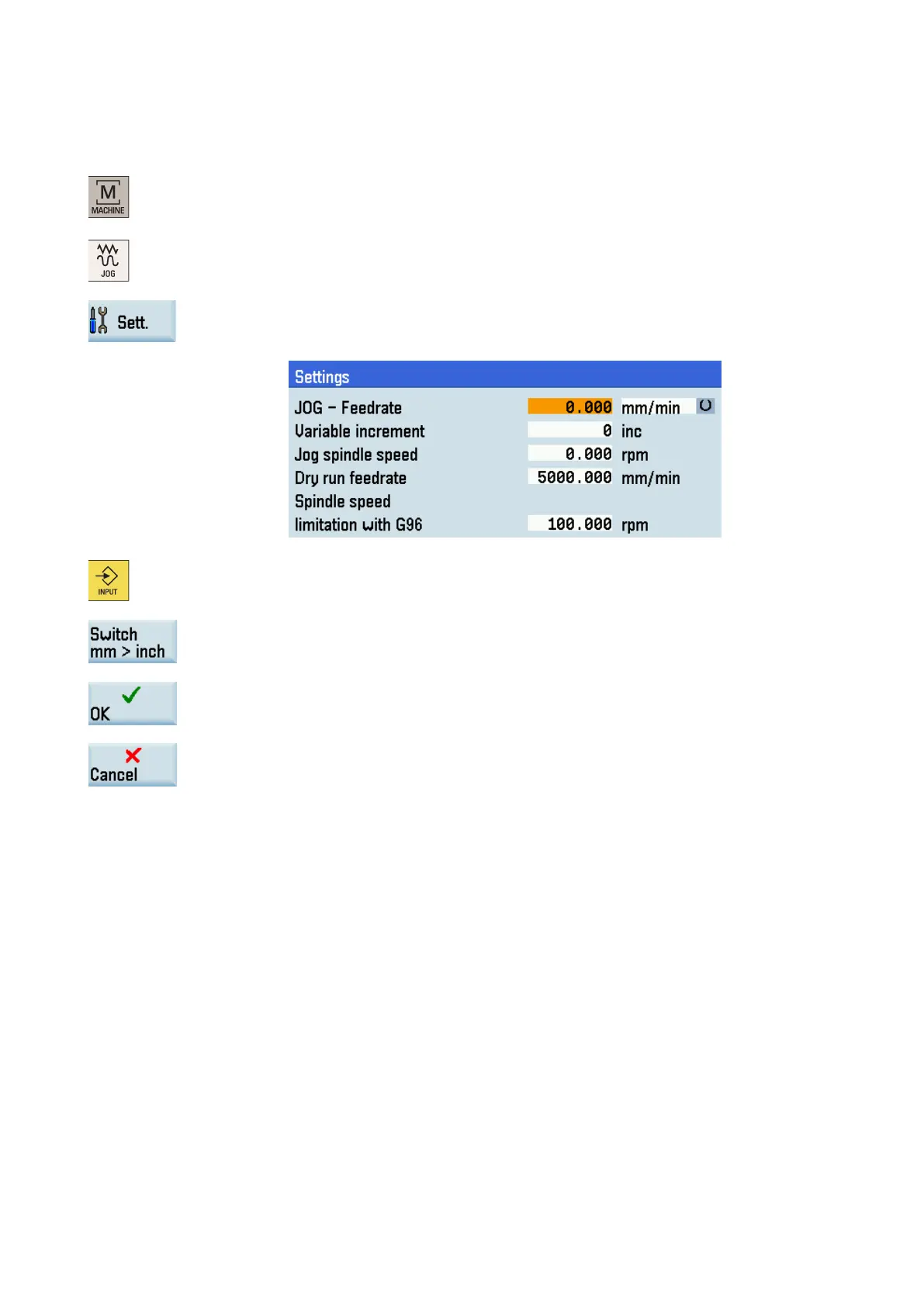

A.2.1.5
Setting the JOG data
Operating sequence
1.
Select the desired operating area.
2.
Switch to "
JOG" mode.
3.
Press this horizontal softkey to open
the following window:
4.
Enter values in the input fields and confirm your entries.
5.
If necessary, press this vertical softkey to switch between the me
tric and inch dimension
systems.
Press this softkey to confirm your change.
Press this softkey to exit
.
